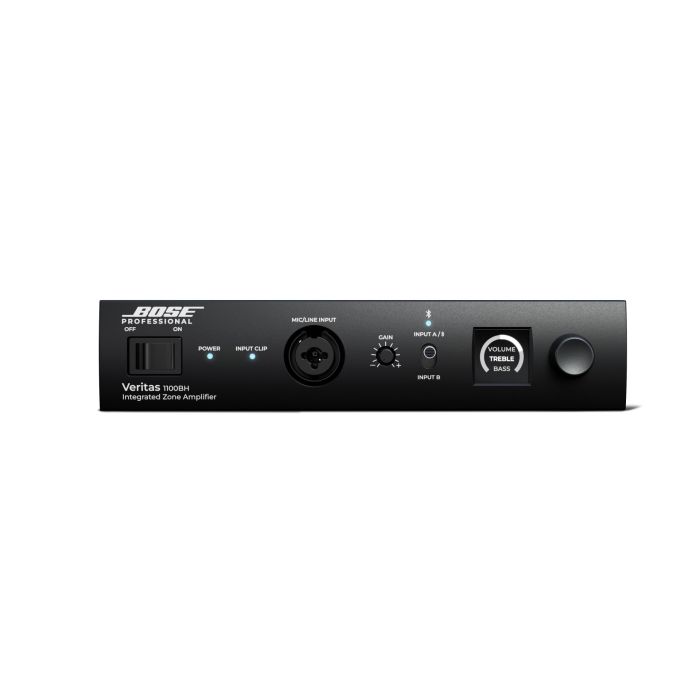

Veritas 1100BH

   The award-winning Veritas series from Bose Professional delivers superior background/foreground music, paging and multimedia for commercial applications. Bluetooth® 5.0 wireless input and user-intuitive OLED screen with quick-start QR code simplify setup—whether you’re a pro installer or a DIYer. With four models to choose from, Veritas amplifiers offer the perfect combination of power, performance and flexibility.

   Compact and powerful, the 1100BH is suited for smaller distributed audio systems, background music, and paging applications. Designed for 70V/100V high-impedance systems, it efficiently powers multiple wall or ceiling loudspeakers to deliver broad coverage. Perfect for smaller venues, offices, and retail spaces, the 1100BH features a smaller half-rack size and front XLR/¼-inch input for convenient mic or audio source connection.



FEATURES

Premium amplification with advanced DSP for optimized performance Bluetooth connectivity and RCA connectivity—no wire splicing required Intuitive front-panel OLED screen for easy setup and control Included bracket accessory for mount-anywhere flexibility Embedded quick-start QR code in the OLED screen simplifies installation Supports high-impedance (70/100V) applications Remote level control with Bose Professional or third-party wall controllers Dynamic EQ adjusts bass levels to achieve a fuller sound even at low volumes Up to 30 selectable EQ presets ensure Bose Professional signature sound performance and long-term reliability Opti-Voice paging feature ensures clear speech intelligibility Convection cooling for fanless operation in quiet installs such as offices and conference rooms

Applications Designed for a wide range of applications, including: Retail stores Restaurants and bars Hospitality venues Conference centers Schools Auxiliary zones



SPECS

Technical Specification

AMPLIFICATION

Dynamic Range 88 dB	Frequency Response 70 Hz – 18 kHz (+0/-4 dB, @ 1 W reference 1 kHz)
Rated Power, Symmetrical 1 x 100 W at 70V/100V	THD+N ≤0.3 % (at full rated power)



AUDIO INPUTS, ANALOG

Input Channels (2) unbalanced line, (2) balanced mic/line	Connectors (2) RCA stereo pairs, (1) XLR/1/4-in, (1) 4-pin Euroblock
Input Impedance 20 kΩ (line), 2.4 kΩ (page)	Input Range -10 dBV to +10 dBV (line), -60 dBV to +10 dBV (page)
Maximum Input Level +10 dBV (line), +10 dBV (page)	Nominal Input Level 0 dBV (line), -40 dBV (page)
Sensitivity -10 dBV (line), -58 dBV (page)



AUDIO OUTPUTS, ANALOG

Channels (2) loudspeaker, (1) unbalanced line	Connectors (1) 3-pin inverted Euroblock, (1) RCA stereo pair
Nominal Output Level 1 × 100 W at 70V/100 V (loudspeaker), 0 dBV max (auxiliary)



ELECTRICAL

Mains Connector IEC C14 inlet	Mains Voltage 100–240 VAC (±10%), 50/60 Hz
Protections High temperature, output short	AC Power Consumption 15 W idle, 200 W maximum



INDICATORS AND CONTROLS

Controls, Front Panel Power on/off switch, input select switch (A/Bluetooth/B), input gain knob (XLR/1/4-in), rotary encoder

Controls, Rear Panel Input gain knobs (A, B, page), mute connector, ControlCenter port



INTEGRATED DSP

A/D and D/A Converters 48 kHz / 24-bit	Audio Latency 10.4 ms (any input to speaker output or aux output)
Presets 70 Hz high-pass filter, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models), EdgeMax (all models), FreeSpace FS (all models), subwoofer	Processing Functions Loudspeaker EQ, Opti-Voice paging, Dynamic EQ



PHYSICAL

Cooling System Natural convection	Product Dimensions (H×W×D) 44 mm × 214 mm × 310 mm (1.7 in × 8.4 in × 12.2 in)
Net Weight 3.2 kg (7.1 lb)



 Included in Packaging

(2) mounting brackets      (6) screws      (4) mounting feet with pins      (1) 4-pin Euroblock connector      (1) 3-pin Euroblock connector      (1) 2-pin Euroblock connector      (1) power cord      (1) installation guide
