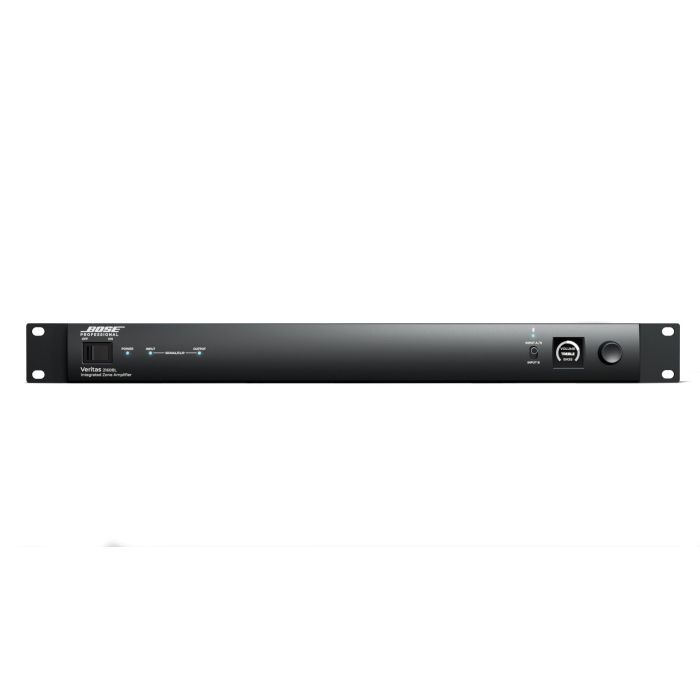

Veritas 2160BL

   The award-winning Veritas series from Bose Professional delivers superior background/foreground music, paging and multimedia for commercial applications. Bluetooth® 5.0 wireless input and user-intuitive OLED screen with quick-start QR code simplify setup—whether you’re a pro installer or a DIYer. With four models to choose from, Veritas amplifiers offer the perfect combination of power, performance and flexibility.

   For applications requiring more power in a low-impedance 4/8-ohm system, the 2160BL delivers robust sound for larger rooms, restaurants, and performance spaces. It provides high output with advanced DSP tuning, perfect for integrators needing a high-performance amplifier for dynamic commercial audio without the complexity of a 70V/100V system.



FEATURES

Premium amplification with advanced DSP for optimized performance Bluetooth connectivity and RCA connectivity—no wire splicing required Intuitive front-panel OLED screen for easy setup and control Embedded quick-start QR code in the OLED screen simplifies installation Supports low-impedance (4–8Ω) applications Remote level control with Bose Professional or third-party wall controllers Dynamic EQ adjusts bass levels to achieve a fuller sound even at low volumes Up to 30 selectable EQ presets ensure Bose Professional signature sound performance and long-term reliability Opti-Voice paging feature ensures clear speech intelligibility

Applications Designed for a wide range of applications, including: Retail stores Restaurants and bars Hospitality venues Conference centers Schools Auxiliary zones



SPECS

Technical Specification

AMPLIFICATION

Channel Separation (Crosstalk) ≤ -58 dBu below rated power, 1 kHz	Dynamic Range 88 dB
Frequency Response 20 Hz – 20 kHz (+0/-3 dB) at 1 W, 1 kHz reference	Rated Power, Symmetrical 2 × 160 W at 4 Ω / 2 × 80 W at 8 Ω
THD+N ≤ 0.5% at rated power



AUDIO INPUTS, ANALOG

Adjustment Range -20 dB to +20 dB (line), 0 dB to +50 dB (page)	Input Channels (2) balanced line, (2) unbalanced line, (1) balanced mic/line
Connectors (2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock	Input Impedance 20 kΩ (line), 2 kΩ (page)
Input Range -8 dBu to +22 dBu (line), -58 dBu to +12 dBu (page)	Maximum Input Level 22 dBu (line), 12 dBu (page)
Nominal Input Level 4 dBu (line), -38 dBu (page)	Sensitivity -8 dBu (line), -58 dBV (page)



AUDIO OUTPUTS, ANALOG

Channels (2) loudspeaker, (1) unbalanced line	Connectors (2) 2-pin inverted Euroblock, (1) RCA stereo pair
Nominal Output Level 2 × 160 W at 4 Ω / 2 × 80 W at 8 Ω (loudspeaker), 2 dBu (auxiliary)



ELECTRICAL

Mains Connector IEC C14 inlet	Mains Voltage 100–240 VAC (±10%), 50/60 Hz
Protections High temperature, output short circuit, excessively low/high AC line voltage	AC Power Consumption 13.6 W standby, 500 W maximum



INDICATORS AND CONTROLS

Controls, Front Panel Power on/off switch, input select switch (A/Bluetooth/B), rotary encoder

Controls, Rear Panel Amplifier mode DIP switches, input gain knobs (A, B, page), page threshold knob, mute connector, ControlCenter ports



INTEGRATED DSP

A/D and D/A Converters 48 kHz / 24-bit	Audio Latency 10.4 ms (any input to speaker output or aux output)
Presets Flat, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models), EdgeMax (all models), FreeSpace FS (all models), subwoofer	Processing Functions Loudspeaker EQ, Opti-Voice paging, Dynamic EQ



PHYSICAL

Cooling System Fan system, left-to-right airflow	Product Dimensions (H×W×D) 44 mm × 483 mm × 324 mm (1.7 in × 19.0 in × 12.8 in)
Net Weight 4.4 kg (9.7 lb)	Shipping Weight 5.8 kg (12.8 lb)



Included in Packaging

(4) mounting feet with pins      (2) 5-pin Euroblock connectors      (1) 4-pin Euroblock connector      (3) 2-pin Euroblock connectors      (1) power cord      (1) installation guide
