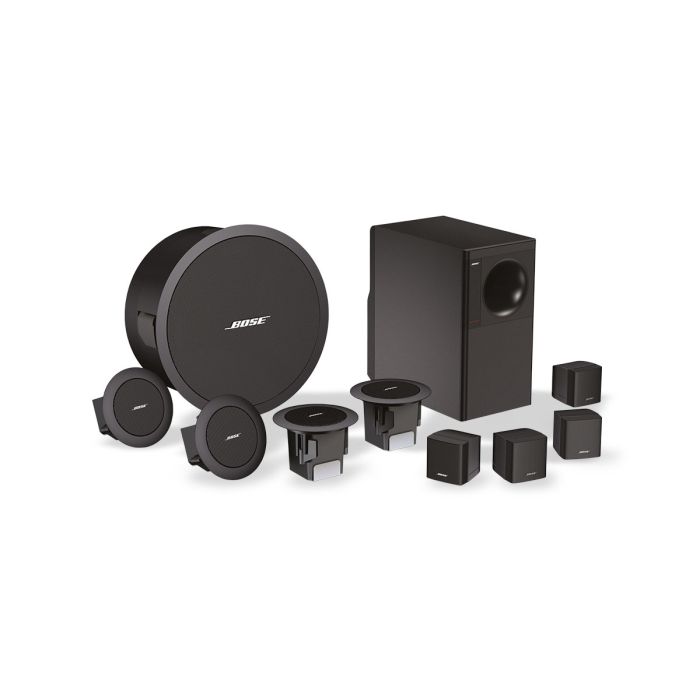

The Bose Professional FreeSpace 3 flush-mount satellites are high-performance, extended-range loudspeakers designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music. For indoor applications only.
FEATURES
Subwoofer/satellite systems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations
Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules
Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications
Flush-mount components are plenum rated when used with the optional plenum cover
Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module
Can be configured for stereo or mono operation
SPECS
Technical Specification
PHYSICAL
Colors Black, white
Enclosure Material PC/ABS
Environmental Indoor only
Grille Expanded metal
Suspension/Mounting (3) mounting arms, (1) seismic chain/safety cable attachment point
Product Dimensions (H×W×D) 6.2 in × 4.8 in (157 mm × 123 mm), loudspeaker diameter × depth / 5.0 in (127 mm), ceiling hole diameter
Net Weight 1.9 lb (0.9 kg)
Shipping Weight 5.0 lb (2.3 kg)
PERFORMANCE
Frequency Range (-10 dB) 170 Hz – 20,000 Hz
Coverage, Horizontal 170° conical
Calculated Maximum SPL @ 1 m Pink noise: 95 dB continuous, 101 dB peak / IEC noise: 92 dB continuous, 108 dB peak
Nominal Impedance 6 Ω
Power Handling, long-term continuous 12 W
Power Handling, Peak 48 W
Recommended Signal Processing Recommended
Sensitivity (SPL/1 W at 1 m) 84 dB
Transformer Taps, 100V N/A
Transformer Taps, 70V N/A
Coverage, Vertical 170° conical
TRANSDUCERS
Low-Frequency 1 × 2.5 in (64 mm) full-range driver per satellite
