SKU
Freespace FS4SE

FreeSpace FS4SE

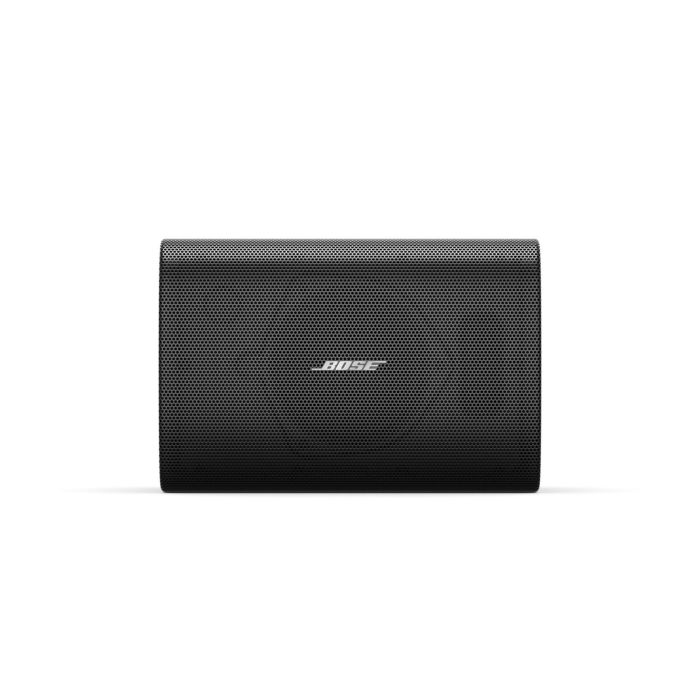

FreeSpace FS4SE surface-mount loudspeakers (1 pair)

The Bose Professional sound quality you expect. The improvements you need. FreeSpace FS loudspeakers are the next step of our widely trusted line of in-ceiling and surface-mount loudspeakers, offering significant upgrades in durability, design, and ease of installation — all with remarkably consistent tonality. Engineered for high-quality performance in both background music and voice announcement applications, FS loudspeakers are ideal for almost any commercial space. The line includes five loudspeakers, two distinct levels of sound, new mounting options, and a modern aesthetic to match. For those seeking consistent, quality installed sound, FreeSpace FS loudspeakers are the perfect mix of performance and value.

FEATURES

  • Maintain consistent tonal quality with shared voicing across all FS models
  • Hear the best of both — music and voice — with transducers that offer clear voice reproduction and smooth response for background music
  • Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mix-and-match installations. DesignMax subwoofers and larger models can expand your system design options even further
  • Blend with more room designs with updated enclosures — available in black and white — that pair modern aesthetics with practical features, including removable logos
  • Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
  • Install with ease — all models feature Euroblock inputs and front-baffle input location on in-ceiling models
  • Support public safety — EN54-24 for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
  • Bring quality sound to more places with the FS4SE — rated for outdoor, wet installations

SPECS

Technical Specification

         COMPLIANCE

EN 54-24 Certified
Yes



Safety Agency Ratings

EN 54-24: 2008 for Voice Alarm Systems; UL 1480(A); NFPA 70 & NFPA 72; CSA C22.1 Section 32



PHYSICAL

Colors
Black (similar to RAL 9005), white (similar to RAL 9003)



Enclosure Material

Engineered plastics, highly UV fade-resistant




Grille

Perforated steel, powder-coated finish, tamper-resistant design



Ingress Protection

IP55



Logo

Removable



Operating Temperature Range

-25 °C to 70 °C (-13 °F to 158 °F)



Product Dimensions (H×W×D)

7.1 in × 4.4 in × 4.5 in (182 mm × 113 mm × 114 mm), loudspeaker / 7.7 in × 4.4 in × 5.3 in (196 mm × 113 mm × 135 mm), loudspeaker with bracket

Net Weight

3.2 lb (1.4 kg), loudspeaker with grille & bracket (single)



Shipping Weight

9.2 lb (4.2 kg), pair





PERFORMANCE



Frequency Range (-10 dB)

83 – 19,000 Hz



Coverage, Horizontal

145°



Calculated Maximum SPL @ 1 m

99 dB



Nominal Impedance

16 Ω (transformer bypass)



Power Handling, long-term continuous

16 W



Power Handling, Peak

64 W



Sensitivity (SPL/1 W at 1 m)

87 dB



Transformer Taps, 100V

2, 4, 8, 16 W, bypass



Transformer Taps, 70

1 W, 2 W, 4 W, 8 W, 16 W, bypass



Coverage, Vertical

140°



TRANSDUCERS



Driver Protection

Recommended high-pass protection 85 Hz with minimum 24-dB/octave filter

Low-Frequency

1 × 2.25 in (57 mm) woofer

More Information
Wireless No
Bluetooth No
Description

FreeSpace FS4SE

FreeSpace FS4SE surface-mount loudspeakers (1 pair)

The Bose Professional sound quality you expect. The improvements you need. FreeSpace FS loudspeakers are the next step of our widely trusted line of in-ceiling and surface-mount loudspeakers, offering significant upgrades in durability, design, and ease of installation — all with remarkably consistent tonality. Engineered for high-quality performance in both background music and voice announcement applications, FS loudspeakers are ideal for almost any commercial space. The line includes five loudspeakers, two distinct levels of sound, new mounting options, and a modern aesthetic to match. For those seeking consistent, quality installed sound, FreeSpace FS loudspeakers are the perfect mix of performance and value.

FEATURES

  • Maintain consistent tonal quality with shared voicing across all FS models
  • Hear the best of both — music and voice — with transducers that offer clear voice reproduction and smooth response for background music
  • Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mix-and-match installations. DesignMax subwoofers and larger models can expand your system design options even further
  • Blend with more room designs with updated enclosures — available in black and white — that pair modern aesthetics with practical features, including removable logos
  • Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
  • Install with ease — all models feature Euroblock inputs and front-baffle input location on in-ceiling models
  • Support public safety — EN54-24 for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
  • Bring quality sound to more places with the FS4SE — rated for outdoor, wet installations

SPECS

Technical Specification

         COMPLIANCE

EN 54-24 Certified
Yes



Safety Agency Ratings

EN 54-24: 2008 for Voice Alarm Systems; UL 1480(A); NFPA 70 & NFPA 72; CSA C22.1 Section 32



PHYSICAL

Colors
Black (similar to RAL 9005), white (similar to RAL 9003)



Enclosure Material

Engineered plastics, highly UV fade-resistant




Grille

Perforated steel, powder-coated finish, tamper-resistant design



Ingress Protection

IP55



Logo

Removable



Operating Temperature Range

-25 °C to 70 °C (-13 °F to 158 °F)



Product Dimensions (H×W×D)

7.1 in × 4.4 in × 4.5 in (182 mm × 113 mm × 114 mm), loudspeaker / 7.7 in × 4.4 in × 5.3 in (196 mm × 113 mm × 135 mm), loudspeaker with bracket

Net Weight

3.2 lb (1.4 kg), loudspeaker with grille & bracket (single)



Shipping Weight

9.2 lb (4.2 kg), pair





PERFORMANCE



Frequency Range (-10 dB)

83 – 19,000 Hz



Coverage, Horizontal

145°



Calculated Maximum SPL @ 1 m

99 dB



Nominal Impedance

16 Ω (transformer bypass)



Power Handling, long-term continuous

16 W



Power Handling, Peak

64 W



Sensitivity (SPL/1 W at 1 m)

87 dB



Transformer Taps, 100V

2, 4, 8, 16 W, bypass



Transformer Taps, 70

1 W, 2 W, 4 W, 8 W, 16 W, bypass



Coverage, Vertical

140°



TRANSDUCERS



Driver Protection

Recommended high-pass protection 85 Hz with minimum 24-dB/octave filter

Low-Frequency

1 × 2.25 in (57 mm) woofer
