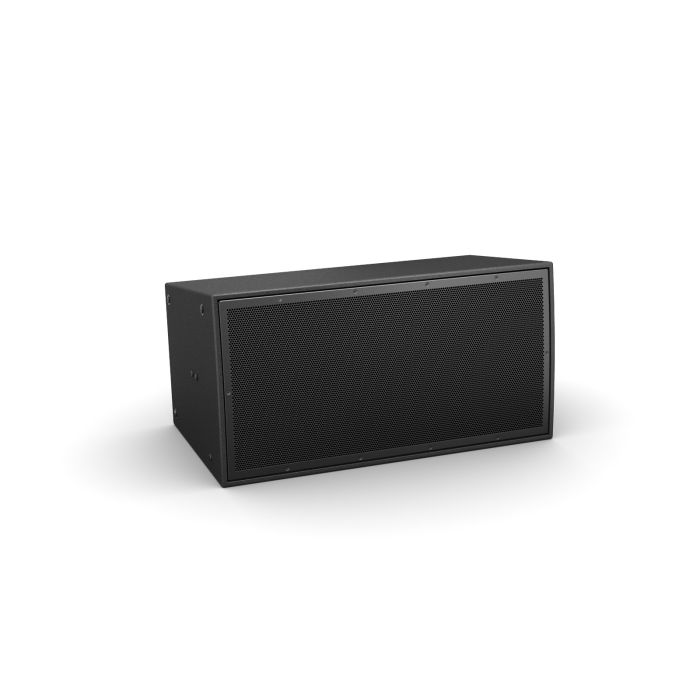

ArenaMatch AM10 DeltaQ array loudspeaker

ArenaMatch AM10 DeltaQ array loudspeaker

ลำโพง ArenaMatch จาก Bose Professional นำคุณภาพเสียงระดับมืออาชีพจากเทคโนโลยี DeltaQ มาสู่การติดตั้งภายนอก เช่น สนามกีฬา อารีนา และศูนย์บันเทิงกลางแจ้ง ลำโพงรุ่นนี้ถูกออกแบบให้ทนต่อสภาพอากาศภายนอกโดยตรง และช่วยให้สามารถออกแบบระบบเสียงกลางแจ้งที่ให้เสียงคมชัดทั่วถึงทุกพื้นที่รับฟัง

มีให้เลือกถึง 9 รูปแบบการกระจายเสียง โดยสามารถเลือกมุมกระจายเสียงในแนวตั้งได้ที่ 10°, 20° หรือ 40° และเปลี่ยนแนวนอนได้ระหว่าง 60°, 80° หรือ 100° ได้อย่างง่ายดาย ช่วยให้ติดตั้งได้สะดวก น้ำหนักเบา ลดเวลาและต้นทุนระบบโดยรวม พร้อมให้ความครอบคลุมเต็มพื้นที่ด้วยจำนวนน้อยชิ้นลง

FEATURES

• Improve sound quality, consistency, and vocal clarity with DeltaQ array technology, which allows directivity, or “Q,” to vary in each module to more precisely match coverage to audience area
• Easily customize horizontal coverage with replaceable waveguides that allow you to further customize coverage and even form asymmetrical patterns for improved acoustic performance in left/right arrays
• Deliver high-SPL, long-throw music reproduction and vocal intelligibility with a 14-inch neodymium woofer and six Bose Professional EMB2S titanium-diaphragm neodymium compression drivers
• Rated for direct-exposure outdoor installations, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded input cover
• Provide full coverage with fewer modules — 10°, 20°, and 40° modules allow you to create arrays that improve sight lines, reduce weight, and lower system costs by requiring fewer modules compared to conventional arrays
• Reduce commissioning time by using 40° modules for point-source applications and 10°, 20° and 40° modules for line arrays — all with the same transducers for consistent tonal balance
• Adapt to a variety of configurations — all models ship standard with bi-amp capability, passive crossover, and 70/100V transformer inputs
• Streamline the design process by combining with complementary Bose Professional products, such as ArenaMatch Utility zone-fill loudspeakers, PowerMatch amplifiers, and ControlSpace DSP
• Save time during installation using Bose Professional accessory mounting hardware or use the standard M12 threaded inserts to interface with custom array frames
• EN 54-24 certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings, refer to the installation guide for specifics.

SPECS

        Technical Specification

               COMPLIANCE

EN 54-24 Certified Yes

Safety Agency Ratings EN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings



PHYSICAL



Colors Black	Enclosure Material Exterior-grade birch plywood
Grille 3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish	Ingress Protection IP55 per EN60529; IP33C per EN 54-24
Product Dimensions (H×W×D) 16.1 in × 30.8 in × 16.5 in (409 mm × 783 mm × 420 mm)	Net Weight 80.0 lb (36.3 kg)
Shipping Weight 95.9 lb (43.5 kg)



PERFORMANCE



Frequency Range (-10 dB) 55 Hz – 18,000 Hz	Coverage, Horizontal 60° (AM10/60), 80° (AM10/80), 100° (AM10/100)
Calculated Maximum SPL @ 1 m AM10/60: 122 dB (LF) / 129 dB (HF) / 129 dB (passive). AM10/80: 122 dB (LF) / 128 dB (HF) / 128 dB (passive). AM10/100: 122 dB (LF) / 127 dB (HF) / 127 dB (passive)	Nominal Impedance Passive: 8 Ω / Bi-amp: 8 Ω + 8 Ω
Power Handling, long-term continuous Low Frequency: 600 W / High Frequency: 150 W / Passive 750 W	Power Handling, Peak Low Frequency: 2400 W peak / High Frequency: 600 W peak / Passive: 3000 W peak
Recommended Power Amplification Bi-amp, LF, 600 W – 1200 W / Bi-amp, HF,150 W – 300 W / Low-Z Passive, 750 W – 1500 W	Recommended Signal Processing Presets in ControlSpace Designer software
Sensitivity (SPL/1 W at 1 m) AM10/60: 94 dB (LF), 107 dB (HF), 100 dB (passive) / AM10/80: 94 dB (LF), 106 dB (HF), 99 dB (passive) / AM10/100: 94 dB (LF), 105 dB (HF), 98 dB (passive)	Transformer Taps, 100V 200 W, 400 W
Transformer Taps, 70V 100 W, 200 W, 400 W	Coverage, Vertical 10°



TRANSDUCERS

Crossover 950 Hz, internal passive or external bi-amp (Bose Professional ControlSpace presets)	High-Frequency 6 × Bose Professional EMB2S titanium-diaphragm, neodymium compression drivers, 2 in (51 mm) voice coil
Low-Frequency 1 × Bose Professional LF14 neodymium 14 in (356 mm) woofer, 4 in (102 mm) voice coil
