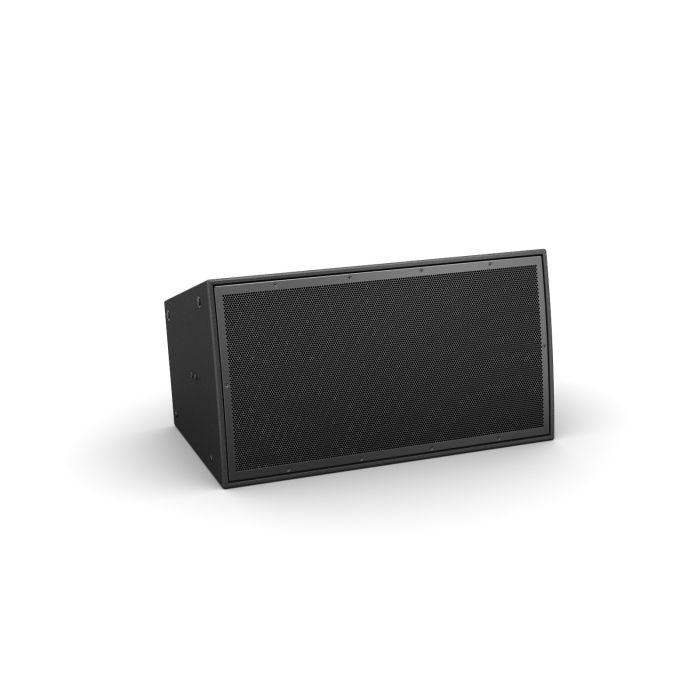

ArenaMatch AM20 DeltaQ array loudspeaker
ArenaMatch AM20 DeltaQ array loudspeaker
ลำโพง ArenaMatch จาก Bose Professional นำคุณภาพเสียงระดับมืออาชีพจากเทคโนโลยี DeltaQ มาสู่การติดตั้งภายนอก เช่น สนามกีฬา อารีนา และศูนย์บันเทิงกลางแจ้ง ลำโพงรุ่นนี้ถูกออกแบบให้ทนต่อสภาพอากาศภายนอกโดยตรง และช่วยให้สามารถออกแบบระบบเสียงกลางแจ้งที่ให้เสียงคมชัดทั่วถึงทุกพื้นที่รับฟัง
มีให้เลือกถึง 9 รูปแบบการกระจายเสียง โดยสามารถเลือกมุมกระจายเสียงในแนวตั้งได้ที่ 10°, 20° หรือ 40° และเปลี่ยนแนวนอนได้ระหว่าง 60°, 80° หรือ 100° ได้อย่างง่ายดาย ช่วยให้ติดตั้งได้สะดวก น้ำหนักเบา ลดเวลาและต้นทุนระบบโดยรวม พร้อมให้ความครอบคลุมเต็มพื้นที่ด้วยจำนวนน้อยชิ้นลง
FEATURES
- Improve sound quality, consistency, and vocal clarity with DeltaQ array technology, which allows directivity, or “Q,” to vary in each module to more precisely match coverage to audience area
- Easily customize horizontal coverage with replaceable waveguides that allow you to further customize coverage and even form asymmetrical patterns for improved acoustic performance in left/right arrays
- Deliver high-SPL, long-throw music reproduction and vocal intelligibility with a 14-inch neodymium woofer and six Bose Professional EMB2S titanium-diaphragm neodymium compression drivers
- Rated for direct-exposure outdoor installations, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded input cover
- Provide full coverage with fewer modules — 10°, 20°, and 40° modules allow you to create arrays that improve sight lines, reduce weight, and lower system costs by requiring fewer modules compared to conventional arrays
- Reduce commissioning time by using 40° modules for point-source applications and 10°, 20° and 40° modules for line arrays — all with the same transducers for consistent tonal balance
- Adapt to a variety of configurations — all models ship standard with bi-amp capability, passive crossover, and 70/100V transformer inputs
- Streamline the design process by combining with complementary Bose Professional products, such as ArenaMatch Utility zone-fill loudspeakers, PowerMatch amplifiers, and ControlSpace DSP
- Save time during installation using Bose Professional accessory mounting hardware or use the standard M12 threaded inserts to interface with custom array frames
- EN 54-24 certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings, refer to the installation guide for specifics.
SPECS
Technical Specification
COMPLIANCE
EN 54-24 Certified
Yes
Safety Agency Ratings
EN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
PHYSICAL
Colors
Black
Enclosure Material
Exterior-grade birch plywood
Grille
3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish
Ingress Protection
IP55 per EN60529; IP33C per EN 54-24
Product Dimensions (H×W×D)
17.2 in × 30.8 in × 16.4 in (437 mm× 783 mm × 416 mm)
Net Weight
80.0 lb (36.2 kg)
Shipping Weight
95.5 lb (43.3 kg)
PERFORMANCE
Frequency Range (-10 dB)
55 Hz – 18,000 Hz
Coverage, Horizontal
60° (AM20/60), 80° (AM20/80), 100° (AM20/100)
Calculated Maximum SPL @ 1 m
AM20/60: 122 dB (LF) / 128 dB (HF) / 128 dB (passive). AM20/80: 122 dB (LF) / 127 dB (HF) / 127 dB (passive). AM20/100: 122 dB (LF) / 126 dB (HF) / 126 dB (passive)
Nominal Impedance
Passive: 8 Ω / Bi-amp: 8 Ω + 8 Ω
Power Handling, long-term continuous
Low Frequency: 600 W / High Frequency: 150 W / Passive 750 W
Power Handling, Peak
Low Frequency: 2400 W peak / High Frequency: 600 W peak / Passive: 3000 W peak
Recommended Power Amplification
Bi-amp, LF, 600 W – 1200 W / Bi-amp, HF,150 W – 300 W / Low-Z Passive, 750 W – 1500 W
Recommended Signal Processing
Presets in ControlSpace Designer software
Sensitivity (SPL/1 W at 1 m)
AM20/60: 94 dB (LF), 106 dB (HF), 99 dB (passive) / AM20/80: 94 dB (LF), 105 dB (HF), 98 dB (passive) / AM20/100: 94 dB (LF), 104 dB (HF), 97 dB (passive)
Transformer Taps, 100V
200 W, 400 W
Transformer Taps, 70V
100 W, 200 W, 400 W
Coverage, Vertical
20°
TRANSDUCERS
Crossover
950 Hz, internal passive or external bi-amp (Bose Professional ControlSpace presets)
High-Frequency
6 × Bose Professional EMB2S titanium-diaphragm, neodymium compression drivers, 2 in (51 mm) voice coil
Low-Frequency
1 × Bose Professional LF14 neodymium 14 in (356 mm) woofer, 4 in (102 mm) voice coil
| ไร้สาย | ไม่ได้ | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| บลูทูธ | No | ||||||||||||||||||||||||||
| Description | ArenaMatch AM20 DeltaQ array loudspeaker
