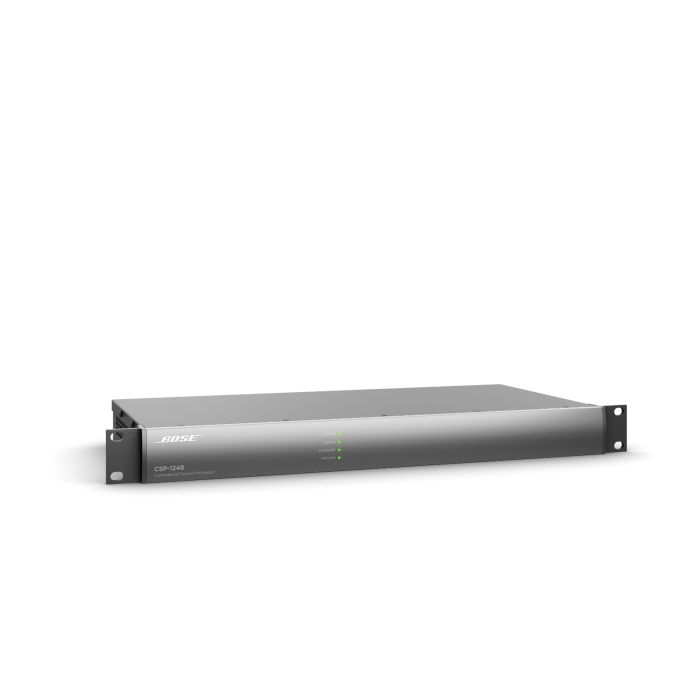

CSP-1248 Commercial Sound Processor

CSP-1248 จาก Bose Professional ช่วยให้การติดตั้งระบบเสียงที่ต้องการ การขยายเสียงดนตรีและไมโครโฟน เป็นเรื่องง่ายและรวดเร็ว ด้วยการควบคุมที่ชาญฉลาด เหมาะสำหรับโปรเจกต์เชิงพาณิชย์ที่ต้องการคุณภาพเสียงดีเยี่ยม พร้อมฟีเจอร์ที่ช่วยให้ผู้ติดตั้งสามารถ ตั้งค่าและใช้งานระบบได้โดยไม่ซับซ้อน — ลดเวลา เพิ่มประสิทธิภาพ และคงความเป็นมืออาชีพในทุกขั้นตอน

AutoVolume ปรับระดับเสียงโดยอัตโนมัติแบบเรียลไทม์ โดยคำนึงถึงเสียงรบกวนในสภาพแวดล้อมที่เปลี่ยนแปลงอยู่ตลอดเวลา
ขณะที่ SmartBass ช่วยปรับเสียงเบสให้สมดุล เสริมบรรยากาศในทุกพื้นที่ให้ฟังไพเราะและน่าประทับใจยิ่งขึ้น



FEATURES

• Ensure optimal sound levels with AutoVolume, which adjusts in real-time to ambient noise, keeping music at the ideal level when paired with AVM-1 sense microphones (sold separately). Upgrade to the CSP-1248 processor to support up to five AVM-1 units, or choose the CSP- 428 processor for up to two units.
• Deliver the perfect bass level—noticeable yet never overpowering. SmartBass delivers balanced bass, adapting to room acoustics and ear sensitivity for rich, nonoverpowering sound, even at low volumes.
• Struggle no more with uneven audio levels between different sources. Opti-Source Level Management, which adjusts the input of up to four sources for uniform volume. Opti-Voice ensures smooth transitions between music and
  announcements.
• Take advantage of full mixing functionality, allowing input sources to be mixed and assigned to each listening area.
• Zone the sound system to tailor audio for each area, creating up to five distinct listening zones. Control each with optional wall-mounted ControlCenter controllers or the ControlSpace Remote app.
• Use the CSP Configuration Utility appto pre-configure devices, and export settings.
• Right-sized connectivity for for cost-effective commercial installation — 8 x 4 balanced analog I/O, 4 pair mono-summed RCA inputs, 8 control inputs, 1 control output, mute contact, Ethernet port, and Bose AmpLink connectivity.
• Bose Professional AmpLink output for simplified digital audio connection to compatible power amplifiers, reducing terminations, and related points of failure.
• Simplify wiring with a network-based architecture, using Cat-5 or Cat-6 wiring and PoE capabilities. Supports both DHCP and static IP schemes for flexibility and scalability.



SPECS

Technical Specification
      AMPLIFICATION

Channel Separation (Crosstalk) < -105 dB at +4 dBu, 1 kHz input signal	Dynamic Range > 115 dB, A-weighted, 20 Hz – 20 kHz, analog through
Frequency Response 20 Hz – 20 kHz (+0.3 dB/-0.5 dB)	THD+N < 0.01% at +4 dBu (A-weighted, 20 Hz – 20 kHz)



ACOUSTIC ECHO CANCELATION (AEC)

AEC-Enabled No



AUDIO INPUTS, ANALOG

Input Channels 12 (4 unbalanced, summed-mono + 8 balanced, mic/line)	Connectors (4) RCA stereo pairs, (7) 3-pin Euroblock, (1) 4-pin Euroblock
Equivalent Input Noise < -119 dBu at 64 dB gain (150 Ω input, 22 Hz – 20 kHz)	Sensitivity Options -70 dBu, -60 dBu, -50 dBu, 0 dBu, +4 dBu, -10 dBV, with selectable phantom power
Input Impedance 12 kΩ at 1 kHz, with or without phantom power	Maximum Input Level +24 dBu at 0 dB gain (20 Hz – 20 kHz, THD+N < 0.3%)
Phantom Power 48 V, selectable per input, open circuit, 10 mA maximum per channel, 80 mA maximum across all channels



AUDIO INPUTS/OUTPUTS, DIGITAL

Channels 8 AmpLink out	Connectors (1) RJ-45 AmpLink out
Type AmpLink (output)



AUDIO OUTPUTS, ANALOG

Channels 4 balanced, line	Connectors (4) 3-pin Euroblock
Maximum Output Level +24 dBu (22 Hz – 20 kHz, THD+N < 0.3%)	Output Impedance 66 Ω



COMPLIANCE

EN 54-24 Certified No



CONTROL INPUTS

Inputs (Control) (8) digital, 9-pin Euroblock, 3.81 mm / (1) digital, 2-pin Euroblock, 3.81 mm (mute)

Digital Input Voltage 0 V – 3.3 V (1.6 V threshold)



CONTROL OUTPUTS

Outputs (Control) (1) digital, 2-pin Euroblock, 3.81 mm, detachable	Output Current 10 mA source, 100 mA sink (24 VDC maximum external supply voltage)
Output Voltage High: 8 V (open circuit), 2.5 V at 10 mA / Low: < 1 V at 100 mA, push-pull



ELECTRICAL

Mains Connector IEC 60320-C14 inlet	Mains Voltage 85–264 VAC, 50/60 Hz
AC Power Consumption < 30 W typical, over all mains voltages (power supply maximum < 45 W)	Power Dissipation 22 W (75 BTU/hr, 19 kcal/hr)



GENERAL

Computer Interface Connection RJ-45 (Ethernet, 10/100 Mbps)



INDICATORS AND CONTROLS

LED Status Indicators (1) power/status LED, (1) input/output signal LED, (1) Ethernet LED, (1) AmpLink LED



INTEGRATED DSP

A/D and D/A Converters 48 kHz / 24-bit	Audio Latency 900 μs, analog input to analog output
DSP-Enabled Yes	Maximum Calculation 3.6 GIPS / 2.7 GFLOPS
Signal Processor/CPU 32-bit fixed/floating-point DSP + Arm 456 MHz processor	Sample Rate / Bit Depth 48 kHz / 24-bit



PHYSICAL

Colors Black	Cooling System Active, side-venting with fan
Suspension/Mounting Standard rack ears	Operating Temperature Range 0 °C to 40 °C (32 °F to 104 °F)
Product Dimensions (H×W×D) 1.7 in × 19.0 in × 8.5 in (44 mm × 483 mm × 215 mm)	Rack Spaces 1RU
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
