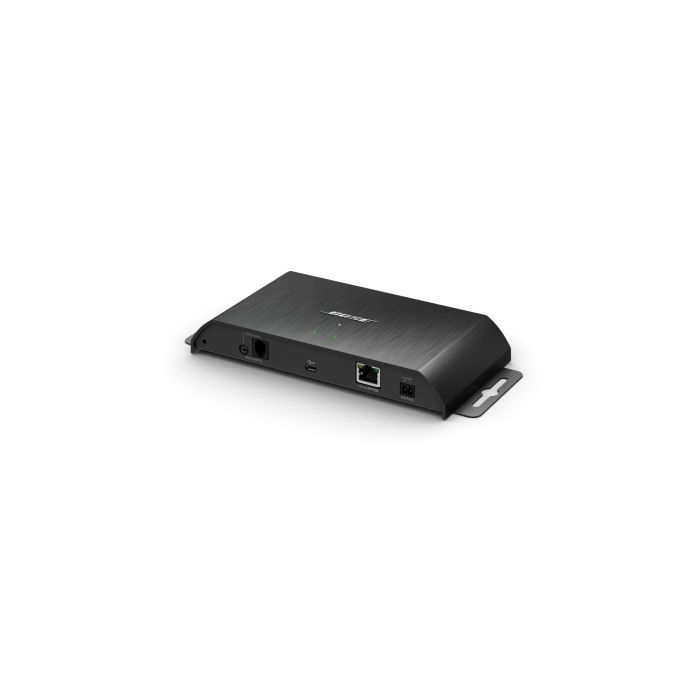

ControlSpace EX-UH USB/headset Dante endpoint

   Optimized for use with the EX-1280C, EX-12AEC, and EX-440C, the EX-UH Dante endpoint, is a convenient, cost effective solution for connecting remote BYOD devices or telephone handsets over a single Cat 5/6 cable. Whether used under a conference table to connect a laptop running a soft-codec such as Skype for Business, or to connect a customer’s handset for bridging calls, or both, the EX-UH’s high-quality USB and headset to Dante audio conversion simplifies wiring and adding extra codecs to a conferencing system. Autodiscovery, drag and drop programming, and auto-routing in ControlSpace Designer make connecting the EX-UH easy.



SPECS

Technical Specification
      AMPLIFICATION

Frequency Response 0 Hz – 20 kHz (±1 dB), USB audio / 20 Hz – 20 kHz (±1 dB), TRRS audio / 200 Hz – 10 kHz (±1 dB), RJ-9 audio

THD+N 0.02%, USB audio / 1.0%, TRRS audio / 0.05%, RJ-9 audio



AUDIO INPUTS, ANALOG

Input Channel 1

Connectors (1) RJ-9, (1) 1/8-in (3.5 mm) TRRS



AUDIO INPUTS/OUTPUTS, DIGITAL

Channels 2 in, 2 out

Connectors (1) RJ-9, (1) 1/8-in (3.5 mm) TRRS



AUDIO INPUTS/OUTPUTS, DIGITAL

Channels 2

Connectors (1) RJ-9, (1) 1/8 in (3.5 mm) TRRS



COMPLIANCE

EMC FCC Part 15 Class A; UL 60950-1, 2nd edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd edition, 2014-10, IEC 60950-1:2005 (2nd edition)



ELECTRICAL

Connectors (2) Euroblock, 2 pins, 3.81 mm	Power Range 12 VDC, daisy-chainable
PoE Class Class 0 802.3at PoE+, PD-compliant	AC Power Consumption 5 W



GENERAL

Compatible with ControlSpace EX-1280, ControlSpace EX-440C, ControlSpace EX-1280C, ControlSpace EX-12AEC, ControlSpace EX Endpoint Mounting Bracket

Software Applications ControlSpace Designer 5.0 or later (Windows)



INDICATORS AND CONTROLS

LED Status Indicators (1) power LED, (1) USB audio signal LED, (1) headset audio signal LED



PHYSICAL

Colors Black	Suspension/Mounting (2) mounting tabs
Operating Temperature Range 0 °C to 40 °C (32 °F to 104 °F)	Product Dimensions (H×W×D) 1.1 in × 8.4 in × 3.6 in (29 mm × 213 mm × 92 mm)



Product codes

771784-0110 ControlSpace EX-UH
