Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
Choose from three DesignMax subwoofer models — the 180-watt in-ceiling DM8C-SUB, the 300-watt surface-mounted DM10S-SUB, and the sleek 300-watt DM10P-SUB pendant subwoofer
Deliver rich bass performance with custom drivers; for optimal performance, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

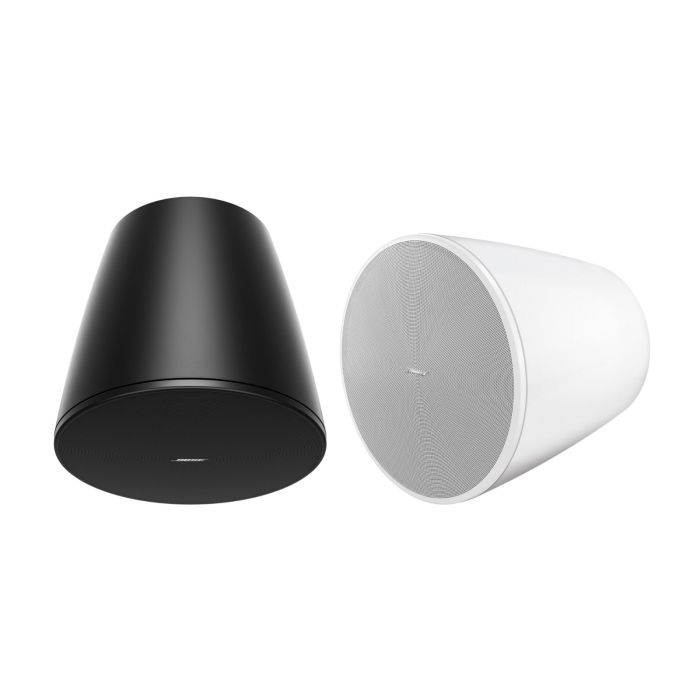

Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access
SPECS
Technical Specification
COMPLIANCE
Safety Agency Ratings UL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant
PHYSICAL
Colors
Black (similar to RAL 9005), white (similar to RAL 9003), paintable
Enclosure Material
Engineered plastics
Environmental
Indoor only
Grille
Perforated steel, powder-coated finish
Logo
Rotatable, removable
Suspension/Mounting
1 suspension attachment point, 1 safety cable attachment point
Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)
Product Dimensions (H×W×D)
15.7 in × 15.1 in (400 mm × 383 mm), loudspeaker diameter × depth
Net Weight
19.7 lb (8.9 kg)
Shipping Weight
27.9 lb (12.7 kg)
PERFORMANCE
Frequency Range (-10 dB)
40 Hz – 125 Hz
Coverage, Horizontal
Omnidirectional below 200 Hz
Calculated Maximum SPL @ 1 m
110 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, long-term continuous
250 W
Power Handling, Peak
1000 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
85 dB
ransformer Taps, 100V
40, 80, 150 W, bypass
Transformer Taps, 70V
20 W, 40 W, 80 W, 150 W, bypass
Coverage, Vertical
Omnidirectional below 200 Hz
TRANSDUCERS
Crossover
80 Hz – 200 Hz via active crossover in DSP
Driver Protection
Recommended high-pass protection 45 Hz with recommended 24 dB/octave filter
