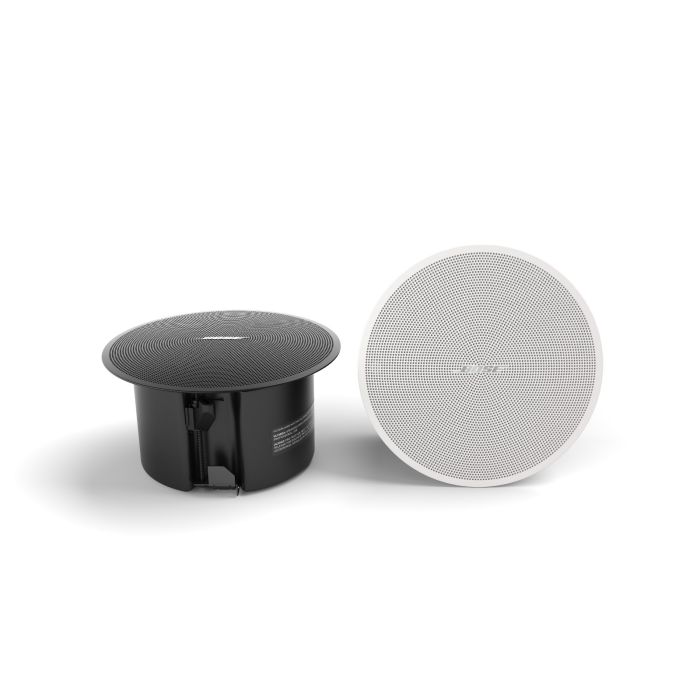

DesignMax DM2C-LP Loudspeakers

DesignMax DM2C-LP (1 คู่)

ลำโพง DesignMax DM2C-LP จาก Bose Professional มีกำลังขับ 20 วัตต์ ให้เสียงเบสแน่น และเสียงแหลมชัดเจน เหมาะสำหรับการติดตั้งในพื้นที่จำกัด ด้วยขนาดที่กะทัดรัดแต่ยังคงคุณภาพเสียงระดับพรีเมียม   DM2C-LP มาพร้อมดรไดเวอร์ขนาด 2.25 นิ้ว ให้ช่วงความถี่ 85 Hz – 19 kHz เหมาะสำหรับการใช้งานเป็นเพลงพื้นหลัง (Background Music) ในทุกพื้นที่ที่ต้องการดีไซน์กลมกลืน ตัวลำโพงแบบฝังฝ้าเพดานมาพร้อมตู้แบบ Low-profile และติดตั้งได้ง่ายด้วยระบบแขนยึด QuickHold ที่ช่วยให้รวดเร็วและปลอดภัย

FEATURES

• Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
• Deliver instantly impressive sound with custom Bose Professional drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level.
• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
• Install in confined ceiling spaces with low-profile backcan measuring just 10 centimeters (3.9 inches) high

SPECS

Technical Specification

     COMPLIANCE

Safety Agency Ratings UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant



PHYSICAL

Colors Black (RAL 9005), white (similar to RAL 9003), paintable	Enclosure Material Engineered-plastics front baffle with integrated steel-formed backcan
Environmental Indoor only	Grille Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
Ceiling Cutout 6.5 in (165 mm)	Logo Rotatable, removable
Suspension/Mounting (2) QuickHold spring-loaded mounting arms, (2) safety cable attachment points	Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
Product Dimensions (H×W×D) 7.8 in × 4.3 in (198 mm × 110 mm), loudspeaker diameter × depth / 6.1 in × 3.9 in (155 mm × 99 mm), backcan diameter × depth	Net Weight 3.6 lb (1.6 kg), loudspeaker with grille (single) / 0.7 kg (1.6 lb), tile bridge (single)
Shipping Weight 13.2 lb (5.9 kg), pair



PERFORMANCE



Frequency Range (-10 dB) 85 Hz – 19,000 Hz	Coverage, Horizontal 150° conical
Calculated Maximum SPL @ 1 m 97 dB	Nominal Impedance 16 Ω (transformer bypass)
Power Handling, long-term continuous 20 W	Power Handling, Peak 80 W
Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available	Sensitivity (SPL/1 W at 1 m) 84 dB
Transformer Taps, 100V 2.3, 4.5, 9 W, bypass	Transformer Taps, 70V 1.2W, 2.3 W, 4.5 W, 9 W, bypass



TRANSDUCERS

Driver Protection Recommended high-pass protection 85 Hz with recommended 24 dB/octave filter

Low-Frequency 1 × 2.25 in (57 mm) woofer
