DesignMax DM3P Loudspeakers

DesignMax DM3P loudspeakers (1 pair)

ลำโพง DesignMax DM3P จาก Bose Professional มีกำลังขับ 30 วัตต์ มาพร้อมดีไซน์โคแอกเชียล coaxial  สองทาง ให้เสียงแหลมชัดเจนและเสียงเบสที่เกินคาดเมื่อเทียบกับขนาด พร้อมดีไซน์หรูหราที่เหมาะกับการติดตั้งเชิงพาณิชย์ทุกรูปแบบ

DM3P มาพร้อมวูฟเฟอร์ขนาด 3.25 นิ้ว และทวีตเตอร์ขนาด 0.75 นิ้ว ติดตั้งภายในระบบ Dispersion Alignment ให้ช่วงความถี่ 75 Hz – 20 kHz

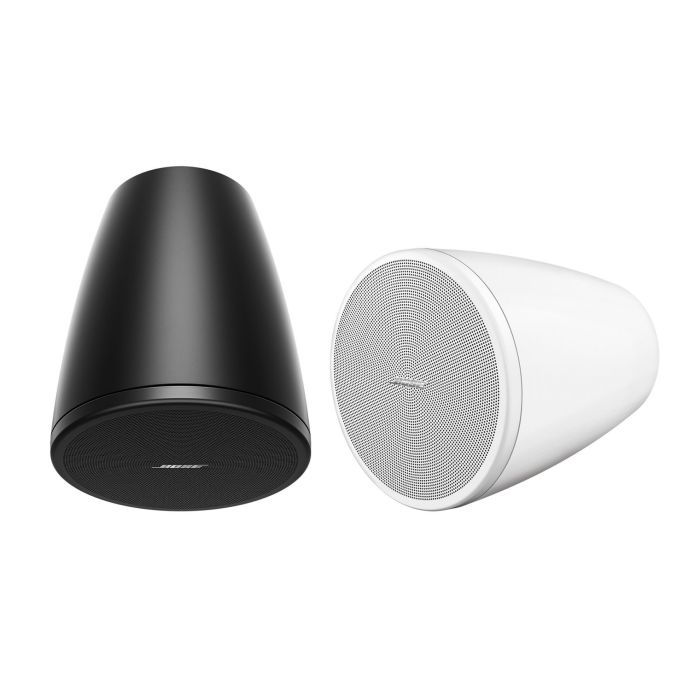

ออกแบบเป็นลำโพงแขวนเพดาน พร้อมระบบแขวนจุดเดียวแบบซ่อน (Recessed Single-Point Suspension) ที่เรียบหรู ดูทันสมัย มีให้เลือกทั้งสีดำและสีขาว เพื่อความกลมกลืนกับการตกแต่งภายใน

FEATURES

• Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
• Choose from three DM3 models — the in-ceiling DM3C, the surface-mounted, outdoor-rated DM3SE, and the sleek DM3P pendant loudspeaker
• Deliver clear highs and surprising low end for their size with a coaxial two-way design — no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
• Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access

SPECS

Technical Specification

         COMPLIANCE

                 Safety Agency Ratings
                 UL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant



PHYSICAL

Colors Black (similar to RAL 9005), white (similar to RAL 9003), paintable	Enclosure Material Engineered plastics
Environmental Indoor only	Grille Perforated steel, powder-coated finish
Logo Rotatable, removable	Suspension/Mounting 1 suspension attachment point, 1 safety cable attachment point
Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)	Product Dimensions (H×W×D) 8.2 in × 9.8 in (207 mm × 248 mm), loudspeaker diameter × depth / 15.0 ft × 0.1 in (4.6 m × 2 mm), suspension cable length × diameter
Net Weight 5.5 lb (2.5 kg), single	Shipping Weight 15.4 lb (7.0 kg), pair



PERFORMANCE

Frequency Range (-10 dB) 75 Hz – 20,000 Hz	Coverage, Horizontal 130° conical
Calculated Maximum SPL @ 1 m 99 dB	Nominal Impedance 8 Ω (transformer bypass)
Power Handling, long-term continuous 25 W	Power Handling, Peak 100 W
Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available	Sensitivity (SPL/1 W at 1 m) 84 dB
Transformer Taps, 100V 6, 12, 25 W, bypass	Transformer Taps, 70V 3 W, 6 W, 12 W, 25 W, bypass
Coverage, Vertical 130° conical



TRANSDUCERS

Crossover 1.7 kHz, passive 2-way crossover	Driver Protection Recommended high-pass protection 80 Hz with minimum 24 dB/octave filter
High-Frequency 1 × 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted	Low-Frequency 1 × 3.25 in (83 mm) woofer
