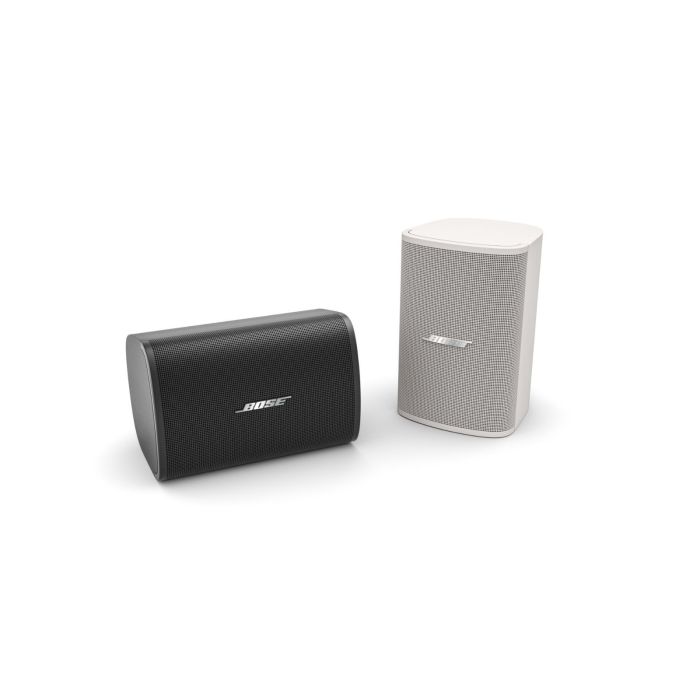

DesignMax DM3SE loudspeakers

DesignMax DM3SE (1 คู่)

ลำโพงติดผนัง DesignMax DM3SE (1 คู่)
DM3SE จาก Bose Professional เป็นลำโพงสองทางชนิดโคแอกเชียล coaxial two-way กำลังขับ 30 วัตต์ ให้เสียงแหลมที่ชัดเจน ฟังเข้าใจง่าย พร้อมเสียงเบสที่เกินขนาดตัวลำโพง เหมาะสำหรับการติดตั้งในพื้นที่เชิงพาณิชย์ที่ต้องการความคมชัดและดีไซน์พรีเมียม

มาพร้อมวูฟเฟอร์ขนาด 3.5 นิ้ว และทวีตเตอร์ขนาด 0.75 นิ้ว แบบโคแอกเชียล ติดตั้งภายในระบบ Dispersion Alignment ให้ช่วงความถี่ตอบสนองตั้งแต่ 75 Hz – 20 kHz

ติดตั้งแบบติดผนัง (Surface-Mount) ด้วยระบบ QuickHold U-bracket แบบซ่อน พร้อมมาตรฐานกันน้ำกันฝุ่นระดับ IP55 สำหรับใช้งานภายนอกอาคารได้อย่างมั่นใจ

FEATURES

• Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
• Deliver clear highs and surprising low-end for their size with coaxial two-way drivers — no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
• Install DM3SE outside — IP55 rating with standard aluminum grille for outdoor use

SPECS

Technical Specification

          COMPLIANCE

                   Safety Agency Ratings
                   UL 1480A, NFPA 70, CE-compliant

PHYSICAL

Colors Black (RAL 9005), white (similar to RAL 9003), paintable	Enclosure Material Engineered plastics, highly UV fade-resistant
Environmental Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover	Grille Perforated aluminum, powder-coated finish, tamper-resistant design, paintable
Ingress Protection IP55	Logo Rotatable, removable
Operating Temperature Range -25 °C to 70 °C (-13 °F to 158 °F)	Product Dimensions (H×W×D) 9.1 in × 6.1 in × 6.1 in (232 mm × 154 mm × 155 mm), loudspeaker / 9.1 in × 6.1 in × 6.7 in (232 mm × 154 mm × 171 mm), loudspeaker with bracket
Net Weight 5.6 lb (2.5 kg), loudspeaker with grille (single)	Shipping Weight 16.0 lb (7.2 kg), pair



PERFORMANCE

Frequency Range (-10 dB) 75 Hz – 20,000 Hz	Coverage, Horizontal 140° conical
Calculated Maximum SPL @ 1 m 101 dB	Nominal Impedance 8 Ω (transformer bypass)
Power Handling, long-term continuous 30 W	Power Handling, Peak 120 W
Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available	Sensitivity (SPL/1 W at 1 m) 86 dB
Transformer Taps, 100V 6, 12, 25 W, bypass	Transformer Taps, 70V 3 W, 6 W, 12 W, 25 W, bypass
Coverage, Vertical 140° conical



TRANSDUCERS

Crossover 1.7 kHz, passive 2-way crossover	Driver Protection Recommended high-pass protection 80 Hz with recommended 24 dB/octave filter
High-Frequency 1 × 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted, weather-treated	Low-Frequency 1 × 3.25 in (83 mm) woofer, weather-treated
