DesignMax DM5P Loudspeakers

DesignMax DM5P (1 คู่)

ลำโพง DesignMax DM5P จาก Bose Professional มีกำลังขับ 60 วัตต์ ออกแบบด้วยระบบโคแอกเชียล coaxial  สองทาง ให้เสียงเบสลุ่มลึก และเสียงแหลมคมชัด พร้อมดีไซน์พรีเมียมที่เข้ากับงานติดตั้งเชิงพาณิชย์ทุกประเภท

DM5P มาพร้อมวูฟเฟอร์ขนาด 5.25 นิ้ว และทวีตเตอร์ขนาด 1 นิ้ว ซึ่งติดตั้งอยู่ภายในระบบ Dispersion Alignment ให้ช่วงความถี่ครอบคลุมตั้งแต่ 65 Hz – 20 kHz

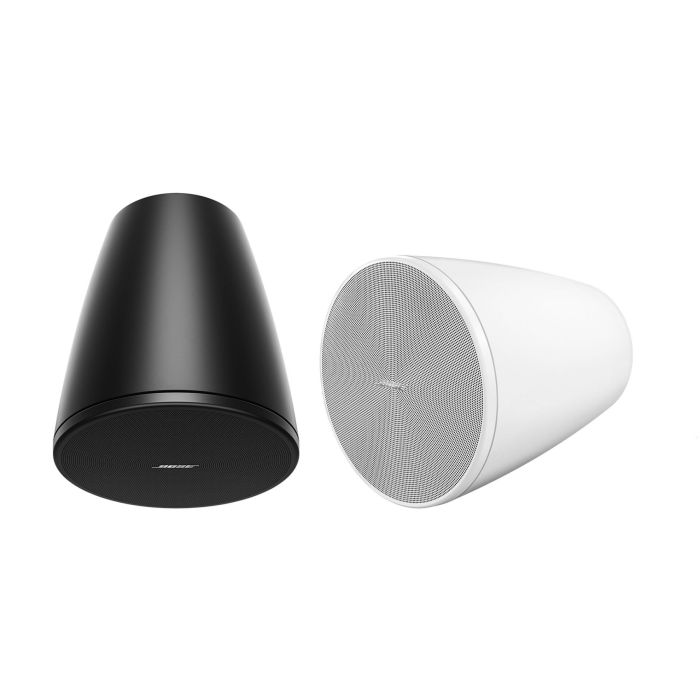

ลำโพงรุ่นนี้เป็นแบบแขวนเพดาน มาพร้อมระบบแขวนจุดเดียวแบบซ่อน (Recessed Single-Point Suspension) ดีไซน์เรียบหรู ดูทันสมัย มีให้เลือกทั้งสีดำและสีขาว

FEATURES

• Complete any commercial sound installation with 15 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
• Choose from three DM5 models — the in-ceiling DM5C, the surface-mounted, outdoor-rated DM5SE, and the sleek DM5P pendant loudspeaker
• Deliver rich lows and clear, intelligible highs with a coaxial two-way design — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
• Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access

SPECS

Technical Specification

          COMPLIANCE

                Safety Agency Ratings
                UL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant



PHYSICAL

Colors Black (similar to RAL 9005), white (similar to RAL 9003), paintable	Enclosure Material Engineered plastics
Environmental Indoor only	Grille Perforated steel, powder-coated finish
Logo Rotatable, removable	Suspension/Mounting 1 suspension attachment point, 1 safety cable attachment point
Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)	Product Dimensions (H×W×D) 10.2 in × 11.8 in (259 mm × 300 mm), loudspeaker diameter × depth / 15.0 ft × 0.1 in (4.6 m × 2 mm), suspension cable length × diameter
Net Weight 9.1 lb (4.1 kg), single	Shipping Weight 24.3 lb (11.0 kg), pair



PERFORMANCE



Frequency Range (-10 dB) 65 Hz – 20,000 Hz	Coverage, Horizontal 120° conical
Calculated Maximum SPL @ 1 m 105 dB	Nominal Impedance 8 Ω (transformer bypass)
Power Handling, long-term continuous 50 W	Power Handling, Peak 200 W
Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available	Sensitivity (SPL/1 W at 1 m) 87 dB
Transformer Taps, 100V 6, 12, 25, 50 W, bypass	Transformer Taps, 70V 3 W, 6 W, 12 W, 25 W, 50 W, bypass
Coverage, Vertical 120° conical



TRANSDUCERS

Crossover 1.8 kHz, passive 2-way crossover	Driver Protection Recommended high-pass protection 65 Hz with minimum 24 dB/octave filter
High-Frequency 1 × 1 in (25 mm) neodymium dome tweeter, coaxially mounted	Low-Frequency 1 × 5.25 in (133 mm) woofer
