DesignMax DM5SE Loudspeakers

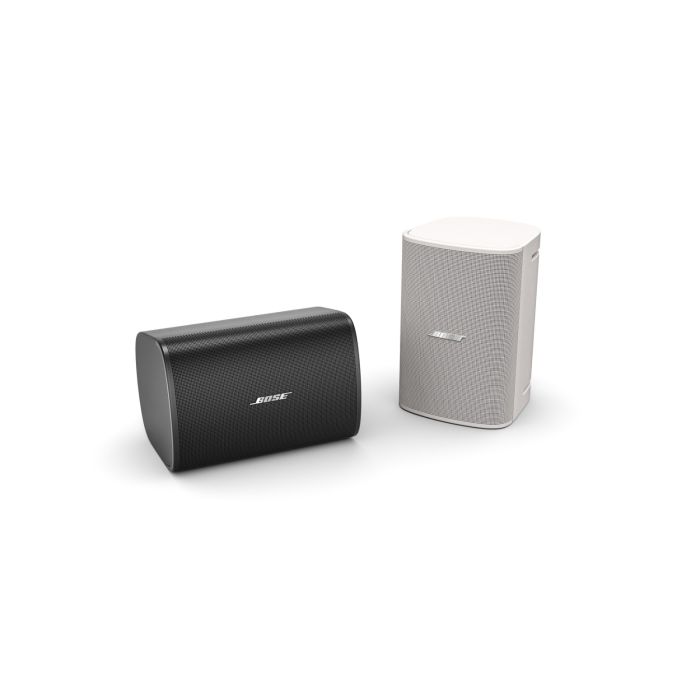

DesignMax DM5SE (1 pair)

ลำโพงติดผนัง DesignMax DM5SE (1 คู่)
DM5SE จาก Bose Professional เป็นลำโพงสองทางชนิดโคแอกเชียล coaxial two-way กำลังขับ 60 วัตต์ ให้เสียงเบสที่แน่นลึก และเสียงแหลมที่ชัดเจน ฟังเข้าใจง่าย พร้อมดีไซน์ระดับพรีเมียมที่เข้ากับทุกการติดตั้งเชิงพาณิชย์

ภายในประกอบด้วยวูฟเฟอร์ขนาด 5.25 นิ้ว และทวีตเตอร์ขนาด 1 นิ้ว แบบโคแอกเชียล ติดตั้งในระบบ Dispersion Alignment ให้ช่วงความถี่ตอบสนองตั้งแต่ 65 Hz – 20 kHz

ติดตั้งแบบติดผนัง (Surface-Mount) ด้วยระบบ QuickHold U-bracket แบบซ่อน และรองรับการใช้งานภายนอกอาคาร ด้วยมาตรฐานกันฝุ่นและกันน้ำระดับ IP55

FEATURES

• Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
• Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
• Blend with any room design with elegant form factor, minimum-bezel grilles available in black or white, and removable logos
• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
• Install DM5SE outside — IP55 rating with standard aluminum grille for outdoor use

SPECS

Technical Specification

         COMPLIANCE

              Safety Agency Ratings
              UL 1480A, NFPA 70, CE-compliant

PHYSICAL

Colors Black (RAL 9005), white (similar to RAL 9003), paintable	Enclosure Material Engineered plastics, highly UV fade-resistant
Environmental Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover	Grille Perforated aluminum, powder-coated finish, tamper-resistant design, paintable
Ingress Protection IP55	Logo Rotatable, removable
Operating Temperature Range -25 °C to 70 °C (-13 °F to 158 °F)	Product Dimensions (H×W×D) 11.2 in × 7.5 in × 7.7 in (286 mm × 192 mm × 197 mm), loudspeaker / 11.2 in × 7.5 in × 8.4 in (286 mm × 192 mm × 215 mm), loudspeaker with bracket
Net Weight 9.7 lb (4.4 kg), loudspeaker with grille (single)	Shipping Weight 25.2 lb (11.4 kg), pair



PERFORMANCE

Frequency Range (-10 dB) 65 Hz – 20,000 Hz	Coverage, Horizontal 135° conical
Calculated Maximum SPL @ 1 m 107 dB	Nominal Impedance 8 Ω (transformer bypass)
Power Handling, long-term continuous 60 W	Power Handling, Peak 240 W
Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available	Sensitivity (SPL/1 W at 1 m) 89 dB
Transformer Taps, 100V 6, 12, 25, 50 W, bypass	Transformer Taps, 70V 3 W, 6 W, 12 W, 25 W, 50 W, bypass
Coverage, Vertical 135° conical



TRANSDUCERS



Crossover 1.8 kHz, passive 2-way crossover	Driver Protection Recommended high-pass protection 65 Hz with minimum 24 dB/octave filter
High-Frequency 1 × 1 in (25 mm) neodymium dome tweeter, coaxially mounted	Low-Frequency 1 × 5.25 in (133 mm) woofer
