DesignMax DM6C Loudspeakers

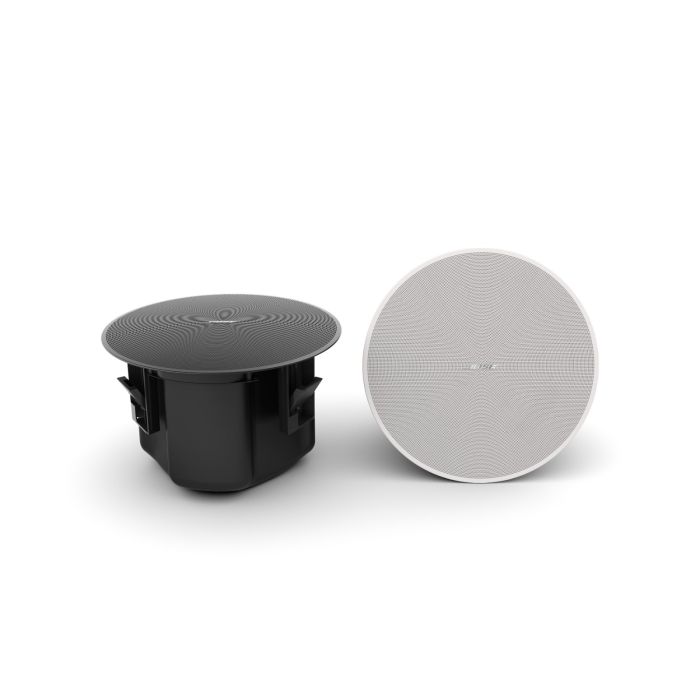

DesignMax DM6C loudspeakers (1 pair)

ลำโพง DesignMax DM6C จาก Bose Professional มีกำลังขับ 125 วัตต์ มาพร้อมดรไดเวอร์แบบโคแอกเชียลสองทาง ให้เสียงทุ้มลึกและเสียงแหลมใสชัดเจน พร้อมดีไซน์ระดับพรีเมียมที่เข้ากับการติดตั้งระบบเสียงเชิงพาณิชย์ทุกประเภท

DM6C มาพร้อมวูฟเฟอร์ขนาด 6.5 นิ้ว และทวีตเตอร์โคแอกเชียลขนาด 1.25 นิ้ว ที่ติดตั้งอยู่ในระบบ Dispersion Alignment ให้ช่วงความถี่ 59 Hz – 20 kHz ติดตั้งแบบฝังฝ้าเพดานได้ง่ายด้วยแขนยึด QuickHold ที่ออกแบบมาให้ติดตั้งสะดวก รวดเร็ว และปลอดภัย

FEATURES

• Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
• Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter
• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

SPECS

Technical Specification

     COMPLIANCE

Safety Agency Ratings UL 1480A, in compliance with UL 2043 for plenum-space installation, NFPA 70 & NFPA 90A, CE-compliant



PHYSICAL

Colors Black (RAL 9005), white (similar to RAL 9003), paintable	Enclosure Material Engineered-plastics front baffle with integrated steel-formed backcan
Environmental Indoor only	Grille Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
Ceiling Cutout 11.5 in (292 mm)	Logo Rotatable, removable
Suspension/Mounting (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points	Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
Product Dimensions (H×W×D) 14.0 in × 9.4 in (356 mm × 239 mm), loudspeaker diameter × depth / 11.3 in × 8.8 in (287 mm × 223 mm), backcan diameter × depth	Net Weight 14.3 lb (6.5 kg), loudspeaker with grille (single) / 1.8 lb (0.8 kg), tile bridge (single)
Shipping Weight 39.1 lb (17.7 kg), pair



PERFORMANCE

Frequency Range (-10 dB) 59 Hz – 20,000 Hz	Coverage, Horizontal 120° conical
Calculated Maximum SPL @ 1 m 109 dB	Nominal Impedance 8 Ω (transformer bypass)
Power Handling, long-term continuous 125 W	Power Handling, Peak 500 W
Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available	Sensitivity (SPL/1 W at 1 m) 88 dB
Transformer Taps, 100V 5, 10, 20, 40, 80 W, bypass	Transformer Taps, 70V 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
Coverage, Vertical 120° conical



TRANSDUCERS

Crossover 1.7 kHz, passive 2-way crossover	Driver Protection Recommended high-pass protection 60 Hz with recommended 24 dB/octave filt
High-Frequency 1 × 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted	Low-Frequency 1 × 6.5 in (165 mm) woofer
