DesignMax DM6PE Loudspeakers

DesignMax DM6PE loudspeakers (1 pair)

ลำโพง DesignMax DM6PE จาก Bose Professional มีกำลังขับ 125 วัตต์ มาพร้อมดีไซน์แบบโคแอกเชียล coaxial สองทาง ให้เสียงทุ้มลึก และเสียงแหลมชัดเจน พร้อมรูปลักษณ์พรีเมียมที่กลมกลืนกับทุกการติดตั้งในเชิงพาณิชย์

DM6PE มาพร้อมวูฟเฟอร์ขนาด 6.5 นิ้ว และทวีตเตอร์ขนาด 1.25 นิ้ว ที่ติดตั้งภายในระบบ Dispersion Alignment ให้ช่วงความถี่ตั้งแต่ 62 Hz – 20 kHz

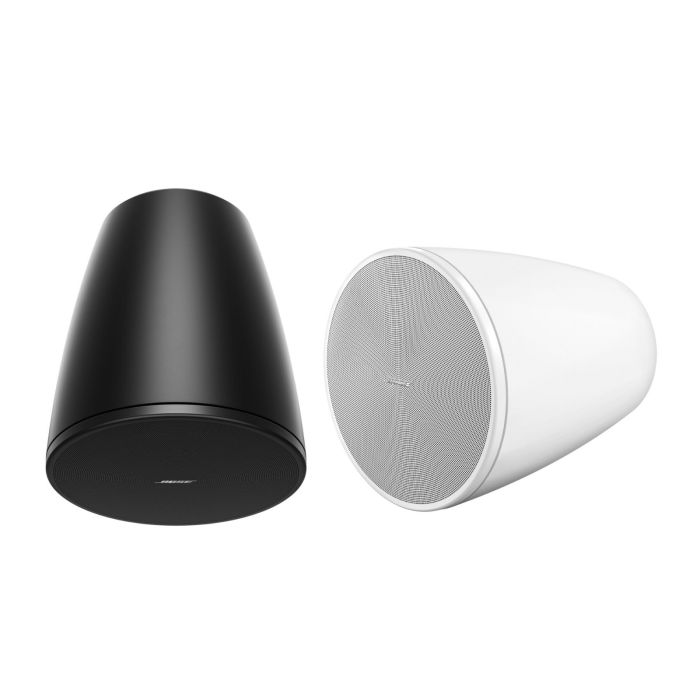

ลำโพงรุ่นนี้ออกแบบมาเป็นพิเศษสำหรับการแขวนเพดาน มีระบบแขวนจุดเดียวแบบซ่อน (Recessed Single-Point Suspension) ที่สวยงามเรียบเนียน พร้อมมาตรฐานกันน้ำกันฝุ่นระดับ IP55 สำหรับการใช้งานทั้งภายในและภายนอกอาคาร มีให้เลือกทั้งสีดำและสีขาว

FEATURES

• Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
• Choose from three DM6 models — the in-ceiling DM6C, the surface-mounted and outdoor-rated DM6SE, and the sleek, outdoor-rated DM6PE pendant loudspeaker
• Deliver rich lows and clear, intelligible highs with a coaxial two-way design — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter

• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
• Install DM6PE outside — IP55 rating with powder-coated steel grille for outdoor

SPECS

Technical Specification

         COMPLIANCE

               Safety Agency Ratings
               UL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant



PHYSICAL

Colors Black (similar to RAL 9005), white (similar to RAL 9003), paintable	Enclosure Material Engineered plastics, highly UV fade-resistant
Environmental Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover	Grille Perforated steel, powder-coated finish
Ingress Protection IP55	Logo Rotatable, removable
Suspension/Mounting 1 suspension attachment point, 1 safety cable attachment point	Operating Temperature Range -25 °C to 65 °C (-13 °F to 149 °F)
Product Dimensions (H×W×D) 12.1 in × 14.8 in (308 mm × 375 mm), loudspeaker diameter × depth	Net Weight 12.5 lb (5.7 kg), single
Shipping Weight 33.1 lb (15.0 kg), pair



PERFORMANCE

Frequency Range (-10 dB) 62 Hz – 20,000 Hz	Coverage, Horizontal 115° conical
Calculated Maximum SPL @ 1 m 110 dB	Nominal Impedance 8 Ω (transformer bypass)
Power Handling, long-term continuous 100 W	Power Handling, Peak 400 W
Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available	Sensitivity (SPL/1 W at 1 m) 89 dB
Transformer Taps, 100V 5, 10, 20, 40, 80 W, bypass	Transformer Taps, 70V 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
Coverage, Vertical 115° conical



TRANSDUCERS

Crossover 1.7 kHz, passive 2-way crossover	Driver Protection Recommended high-pass protection 60 Hz with recommended 24 dB/octave filter
High-Frequency 1 × 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted, weather-treated	Low-Frequency 1 × 6.5 in (165 mm) woofer, weather-treated
