FreeSpace 3 Module ROHS

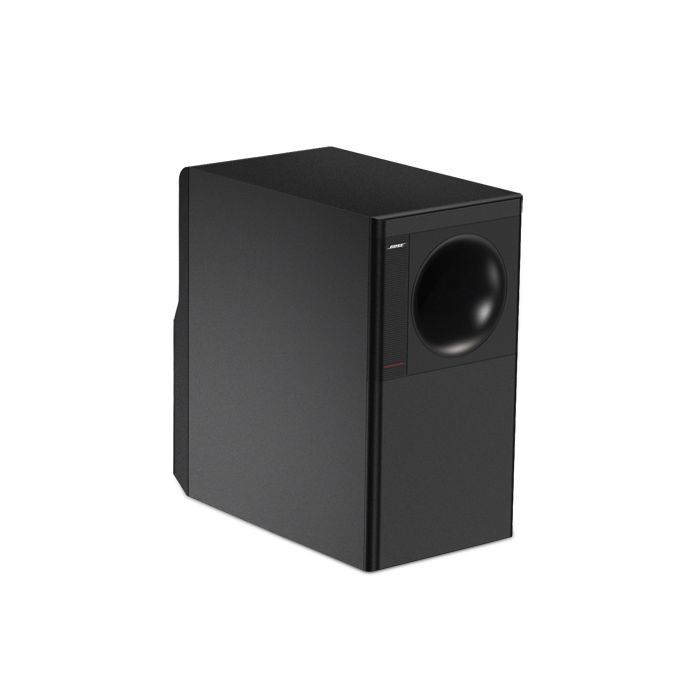

FreeSpace 3 Module

ซับวูฟเฟอร์ FreeSpace 3 Series II Acoustimass Bass Module
ออกแบบมาเพื่อเสริมเสียงเบสในระบบเพลงพื้นหลัง background music ทั้งสำหรับการติดตั้งใหม่และการอัปเกรดระบบเดิม ตัวตู้แบบฝังฝ้าเพดานมาพร้อมวูฟเฟอร์ขนาด 5.25 นิ้ว (133 มม.) ให้เสียงเบสลึกได้ถึง 40 Hz โดยไม่มีความเพี้ยนที่ได้ยินชัด

เหมาะสำหรับการใช้งานภายในอาคารเท่านั้น

FEATURES

• Low-frequency loudspeaker featuring one 5.25-inch (133 mm) woofer that delivers deep, non-localized bass down to 40 Hz without audible distortion. For surface-mount applications.
• Speaker technology filters out audible distortion to deliver non-localized bass
• Designed to work with the FreeSpace 3 surface and flush satellite speakers, or existing systems where additional bass reinforcement is desired
• Module design allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module
• Selectable 70/100V or low impedance

SPECS

Technical Specification

          COMPLIANCE

                  EN 54-24 Certified
                  No

PHYSICAL

Colors Black	Enclosure Material High-density wood composite with solid color PVC laminate
Environmental Indoor only	Suspension/Mounting Wall-mount bracket, preattached
Product Dimensions (H×W×D) 14.0 in × 7.5 in × 13.6 in (356 mm × 191 mm × 345 mm) / width with bracket: 8.8 in (222 mm)	Net Weight 17.5 lb (7.9 kg)
Shipping Weight 25.0 lb (11.3 kg)



PERFORMANCE

Frequency Range (-10 dB) 40 Hz – 315 Hz	Coverage, Horizontal Omnidirectional below 200 Hz
Calculated Maximum SPL @ 1 m Per channel: 96 dB continuous, 102 dB peak / Mono: 102 dB continuous, 108 dB peak	Nominal Impedance 5 Ω mono direct (transformer bypassed)
Power Handling, long-term continuous 70/100 V: 200 W mono / Low impedance: 50 W per channel stereo or 100 W mono	Power Handling, Peak 70/100 V: 800 W peak mono / Low impedance: 200 W peak per channel stereo or 400 W peak mono
Recommended Signal Processing Recommended	Sensitivity (SPL/1 W at 1 m) Per channel: 76 dB / Mono: 79 dB
Transformer Taps, 100V 25 W, 50 W, 100 W, 200 W	Transformer Taps, 70V 25 W, 50 W, 100 W, 200 W
Coverage, Vertical Omnidirectional below 200 Hz



TRANSDUCERS

Driver Protection Recommended high-pass filter 40 Hz high-pass filter

Low-Frequency 5.25 in (133 mm) dual-voice-coil low-frequency driver
