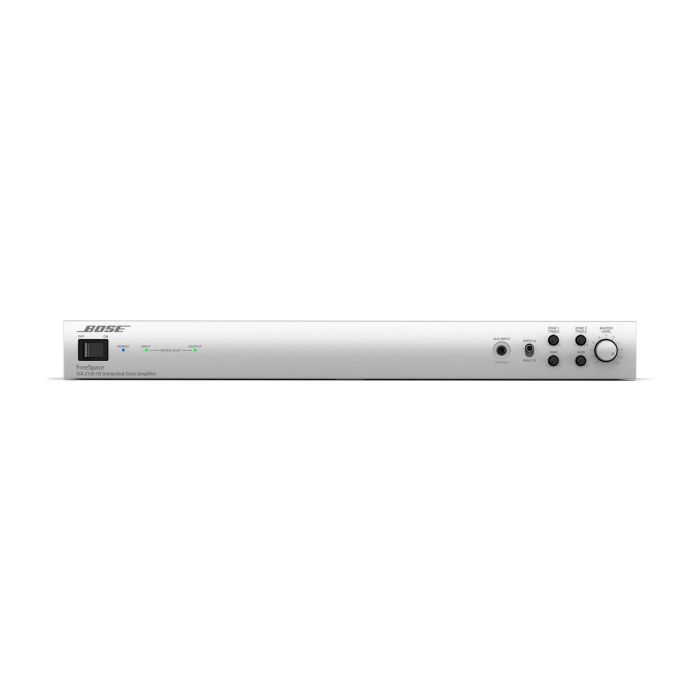

FreeSpace IZA 2120-HZ integrated zone amplifier

   FreeSpace IZA 2120-HZ แอมป์โซนแบบผสมในตัว (Integrated Zone Amplifier) ออกแบบมาเพื่อยกระดับประสบการณ์เสียงในระบบ เพลงพื้นหลัง/พื้นหน้า และระบบประกาศเสียง (Paging) โดยเฉพาะเมื่อใช้งานร่วมกับลำโพง FreeSpace SeriesIZA 2120-HZ เหมาะสำหรับการใช้งานในเชิงพาณิชย์โดยตรง มาพร้อมฟีเจอร์สำคัญ ได้แก่:

• Loudspeaker EQ ที่เลือกได้ เพื่อปรับจูนเสียงให้เข้ากับลำโพงและเพิ่มคุณภาพเสียงโดยรวม
• Opti-Voice® Paging เพิ่มความคมชัดในการประกาศเสียงพูด พร้อมการเปลี่ยนโหมดที่ราบรื่น
• Dynamic EQ ที่ช่วยให้เสียงดนตรีมีความเต็มอิ่มและสมดุลในทุกระดับความดัง



FEATURES

• True two-zone capability provides two independent outputs that each support volume/source selection remotes, EQ, tone controls, and paging/auxiliary routing options
• Opti-Voice paging equalizes the vocal frequency range for clear speech intelligibility while providing seamless transitions
• Dynamic EQ ensures full and balanced music at any volume level

• Independent Loudspeaker EQ per output enriches audio quality and simplifies connection to Bose Professional loudspeakers: FreeSpace 3 systems, FS3 subwoofer, FS2, FS4 and DesignMax DM2
• Dual remotes support optional volume/source selection for independent, or combined, zone control which eliminates the need for bulky, inefficient, and sound-altering 70/100V in-line volume controls

• Reliable 2 × 120 W Class-D amplification optimized for 70/100V high-impedance applications
• Intuitive feature setup enables the amplifier to be configured without a PC for remote, paging, auxiliary input/output and automatic standby options
• Auto-Standby feature allows the amplifier to consume less power when not in use
• Simplified front panel interface provides end users with tone, source selection and master volume controls as well as a connection to mobile sources via a 3.5 mm connector
• Remote muting allows the amplifier to be muted via a centralized control system

SPECS

Technical Specification
       AMPLIFICATION

Channel Separation (Crosstalk) ≤ -58 dBu below rated power, 1 kHz	Dynamic Range 88 dB
Frequency Response 55 Hz – 20 kHz (+0 dB/-3 dB) at 1 W, 1 kHz reference	Number of Channels 2
Power Class Class D	Rated Power, Symmetrical 120 W per channel at 70V, 100V
THD+N 0.3% at rated power



AUDIO INPUTS, ANALOG

Adjustment Range 0 dB to -30 dB, line / 0 dB to +50 dB, page / fixed, auxiliary	Input Channels 2 unbalanced, line + 2 balanced, line + 1 balanced, mic/line (page) + 1 unbalanced, line (auxiliary)
Connectors (2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock, (1) 1/8-in (3.5 mm) TRS	Input Impedance 20 kΩ, line / 2 kΩ, page / 20 kΩ, auxiliary
Input Range -8 dBu to +22 dBu, line / -58 dBu to +12 dBu, page / -60 dBu to -1 dBu, auxiliary	Maximum Input Level 22 dBu, line / 12 dBu, page / -1 dBu, auxiliary
Nominal Input Level 4 dBu, line / -38 dBu, page / -8 dBu, auxiliary	Sensitivity -8 dBu, line / -3 dBu, auxiliary / N/A, page



AUDIO OUTPUTS, ANALOG

Channels 2	Connectors (2) 2-pin inverted Euroblock, (1) RCA stereo pair
Nominal Output Level 2 × 120 W at 70V, 100V / 2 dBu (auxiliary)	Output Impedance N/A (amplifier) / 400 Ω (auxiliary)



ELECTRICAL

Current Draw, Inrush 6.6 A at 120 VAC, 60 Hz / 12.6 A at 230 VAC, 50 Hz	Mains Connector IEC C14 inlet
Mains Voltage 100–240 VAC (±10%), 50/60 Hz	Protections High temperature, output short circuit, excessively low/high AC line voltage
AC Power Consumption 26 W standby, 300 W maximum



INDICATORS AND CONTROLS

Controls, Front Panel (1) power switch, (1) input selection switch, (2) treble knobs, (2) bass knobs, (1) master level knob	Controls, Rear Panel Amplifier Mode DIP switches, Loudspeaker EQ preset selector, Input Gain (A/B/Page), Output trims, Remote (x2)
LED Status Indicators (1) power LED, (1) input signal/clip LED, (1) output signal/clip LED



INTEGRATED DSP

A/D and D/A Converters 48 kHz / 24-bit	Audio Latency 10.4 ms (analog input to analog output)
Presets High-pass filter, Bose Professional loudspeaker presets (FreeSpace FS2C/FS2P/FS2SE/FS4CE/FS4SE, FreeSpace 3 Acoustimass & DesignMax DM2C-LP/DM2S/DM3C/DM3SE)	Processing Functions Loudspeaker EQ, Opti-Voice EQ (paging), Dynamic EQ (low-end compensation)



PHYSICAL

Cooling System Single fan creates continuous left-to-right air flow	Product Dimensions (H×W×D) 1.7 in × 19.0 in × 12.8 in (44 mm × 483 mm × 324 mm)
Net Weight 9.0 lb (4.1 kg)	Rack Spaces 1 RU
