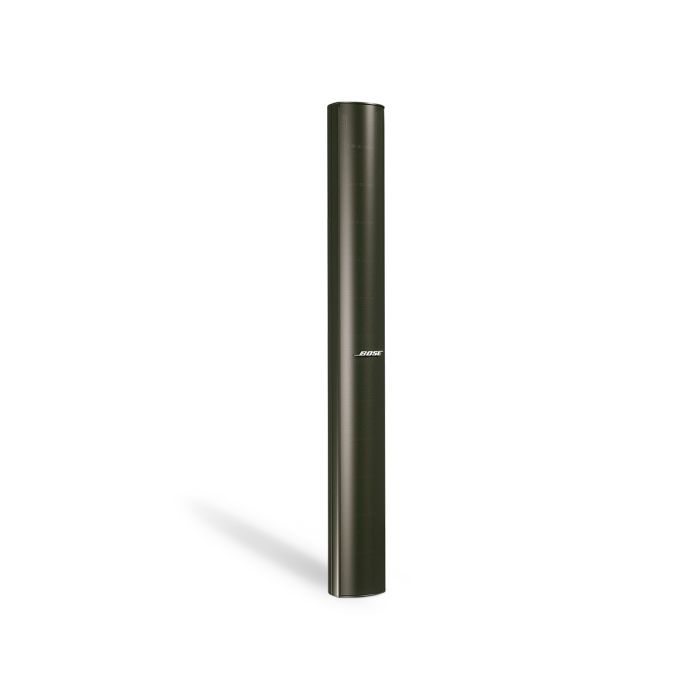

ลำโพงคอลัมน์ความถี่กลาง/สูง Bose Professional MA12 ออกแบบมาเพื่อให้เสียงร้องมีความชัดเจนในพื้นที่ที่มีความต้องการเสียงสูง โดยมีระยะครอบคลุมแนวนอนกว้าง 145° ลำโพงคอลัมน์ขนาดเพรียวบางเข้ากันได้กับการตกแต่งเกือบทุกแบบ
สำหรับการใช้งานภายในอาคารเท่านั้น
FEATURES
Twelve 2.25-inch (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
145° horizontal × 20° nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration.
Mid/high configuration allows bass management and design flexibility. Use with Bose Professional MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement.
Optional brackets allow easy installation of single-, double- or triple-stack line array modules
SPECS
Technical Specification
COMPLIANCE
EN 54-24 Certified No
PHYSICAL
Colors
Black, white
Enclosure Material
Extruded-aluminum sidewalls with steel top & bottom endcaps, all powder-coated
Grille
Aluminum, powder-coated finish
Suspension/Mounting
4 × M6 threaded inserts
Product Dimensions (H×W×D)
38.8 in × 4.2 in × 5.0 in (984 mm × 105 mm × 128 mm)
Net Weight
19.0 lb (8.5 kg)
PERFORMANCE
Frequency Range (-10 dB)
100 Hz – 16,000 Hz
Coverage, Horizontal
145°
Calculated Maximum SPL @ 1 m
113 dB continuous, 119 dB peak
Nominal Impedance
8 Ω
Power Handling, long-term continuous
300 W
Power Handling, Peak
1200 W
Recommended Signal Processing
Bose Professional loudspeaker EQ
Sensitivity (SPL/1 W at 1 m)
88 dB
Transformer Taps, 100V
CVT-MA12 transformer available
Transformer Taps, 70V
CVT-MA12 transformer available
Coverage, Vertical
20°
TRANSDUCERS
Driver Protection
Overload protection
Low-Frequency
12 × 2.25 in (57 mm) high-excursion mid/high-frequency drivers
