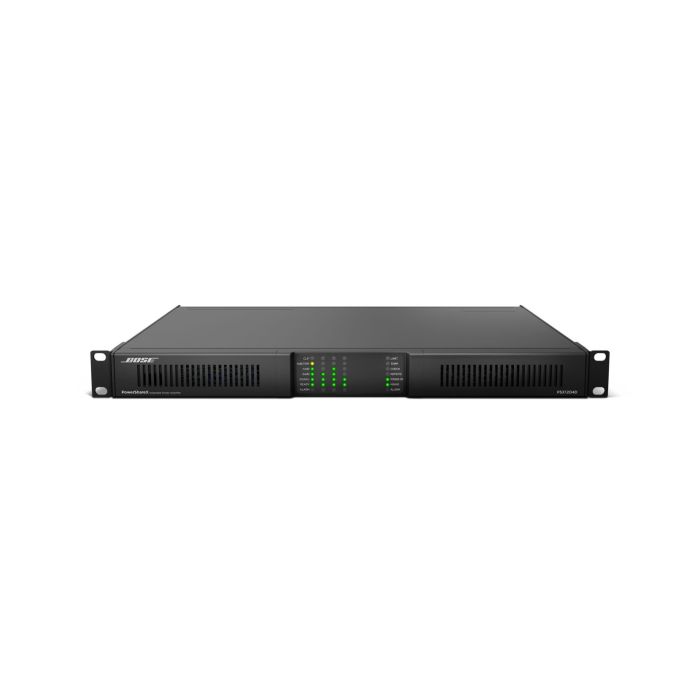

PowerShareX PSX1204D adaptable power amplifier

   PowerShareX PSX1204D เพาเวอร์แอมป์อัจฉริยะ 4 แชนแนล พร้อม DSP ในตัว (กำลังรวม 1200 วัตต์)
PSX1204D คือเพาเวอร์แอมป์อัจฉริยะขนาด 4 แชนแนล กำลังขับรวม 1200 วัตต์ ที่ออกแบบมาสำหรับใช้งานร่วมกับระบบเสียงติดตั้งของ Bose Professional   ภายในมาพร้อม DSP ในตัว ที่ให้คุณเข้าถึงพรีเซ็ตลำโพงที่ได้รับการปรับแต่งมาอย่างเหมาะสมได้ทันทีผ่านซอฟต์แวร์ ControlSpace Designer  รองรับการทำงานร่วมกับอุปกรณ์ในระบบของ Bose ได้อย่างราบรื่น ไม่ว่าจะเป็น โปรเซสเซอร์ ลำโพง หรือคอนโทรลเลอร์  ช่วยให้ขั้นตอนการออกแบบระบบ การกำหนดค่า การติดตั้ง และการใช้งานเป็นไปอย่าง ง่าย รวดเร็ว และมืออาชีพ — ให้คุณทำงานจบไว พร้อมลุยโปรเจกต์ถัดไปได้ทันที



FEATURES

• Power-sharing technology: Dynamically allocates power evenly or asymmetrically across outputs without having to bridge channels or lose channel count when powering Bose Professional loudspeakers.
• Bose Professional certified presets and ControlSpace Designer integration: Delivers the best performance, loudspeaker protection, and visibility of the entire Bose Professional system from a single UI for easy design, configuration, control, and monitoring.
• Proven Powersoft reliability: Ensures the systems operate every day, mitigating non-billable service calls.
• Flexible outputs: Capable of handling either low-impedance (2, 4, 8Ω) or high-impedance (70, 100V) loudspeaker loads.
• Built-in Dante audio: Supports up to 4 digital input channels from a Dante network eliminating the requirement of ordering and installing an accessory network card.
• 4 analog inputs: Provide line-level source connections.
• PowerShare Design Tool: A downloadable design tool that allows system designers the ability to choose their PowerShare amp and simulate the power-sharing capability that, in some cases, can lead to a lower-power model requirement and cost savings.
• GPIO connections: Provide a remote level, on/off, and alarm triggers.
• Network monitoring: Provides real-time system performance data, minimizing downtime, guesswork, and unnecessary service calls.
• Rack-friendly 1RU design: That is only 358 mm (14.1 in) deep eliminating the need for oversized racks.
• EN 54-16 compliant for reliable use in VA/PAVA systems with other compliant system components.



SPECS

Technical Specification
        AMPLIFICATION



Channel Separation (Crosstalk) -70 dB typical at 1 kHz	Gain, Low-Impedance 26 dB, 29 dB, 32 dB, 35 dB, selectable
Maximum Peak Power, Symmetrical 800 W at 2 Ω / 600 W at 4 Ω, 8 Ω, 70V, 100V	Maximum Peak Power, Asymmetrical 2200 W at 2 Ω, 4 Ω, 8 Ω, 70V, 100V
Rated Power, Asymmetrical 1100 W at 2 Ω / 1100 W at 4 Ω in 70V mode / 1100 W at 8 Ω in 100V mode / 1100 W at 70V, 100V	SNR > 104 dB (A-weighted)
Frequency Response 20 Hz – 20 kHz (±1.0 dB), 1 W at 8 Ω	Number of Channels 4
Power Class Class D	Rated Power, Symmetrical 400 W per channel at 2 Ω / 300 W per channel at 4 Ω, 8 Ω, 70V, 100V
THD+N < 0.1% (< 0.05% typical, from 0.1 W to half-power)



AUDIO INPUTS, ANALOG

Input Channel 4 balanced, line	Connectors (1) 6-pin Euroblock
Input Impedance 20 kΩ	Maximum Input Level 20 dBu
Sensitivity 2.48 Vrms at 26 dB gain, 1.76 Vrms at 29 dB gain, 1.24 Vrms at 32 dB gain, 0.88 Vrms at 35 dB gain



AUDIO INPUTS/OUTPUTS, DIGITAL

Channels 4 Dante in	Connectors (1) RJ-45 Dante in
Type 6-pin Euroblock



AUDIO OUTPUTS, ANALOG

Channels 4

Connectors (1) 8-pin Euroblock, 7.62 mm



COMPLIANCE

Safety EN 54-16 certified, voice alarm control and indicating equipment

EMC This product meets all EN55103-2 immunity requirements for E2 electromagnetic environment.



ELECTRICAL

Current Draw, Idle 0.45 A at 115 VAC, 60 Hz / 0.25 A at 230 VAC, 50 Hz	Mains Connector IEC C20 inlet
Mains Voltage 100–240 VAC (±10%), 50/60 Hz	Protections High temperature, DC, output short circuit, high frequency, excessively low/high AC mains voltage, inrush current, clip, peak, long-term/RMS
AC Power Consumption 31.1 W idle, 251 W maximum at 1/8 power at 4 Ω



GENERAL

Software Applications ControlSpace Designer 5.12 or later (Windows)	Computer Interface Connection RJ-45 (Ethernet)
Notification Outputs (1) 12-pin Euroblock (3 pins per channel), general purpose



INDICATORS AND CONTROLS

Controls, Front Panel (1) power button, (1) soft reset button, (1) hard reset button, (1) check button, (4) channel attenuation controls	Controls, Rear Panel 16 output DIP switches (4 per channel), 8 system configuration DIP switches
LED Status Indicators (21) channel meter LEDs, (7) system status LEDs, (2) power status LEDs



INTEGRATED DSP

Delay 2 s (input) + 100 ms (output) for time alignment	Internal Precision 32-bit floating-point
Equalization Input: 8-band parametric EQ (±15 dB), notch, shelving, high-pass, low-pass / array EQ (ArenaMatch) / band-pass crossover / loudspeaker: 9-band parametric EQ (±15 dB), notch, shelving	Crossover Types Butterworth, Bessel, or Linkwitz-Riley, up to 48 dB/octave
A/D and D/A Converters 48 kHz / 24-bit	Audio Latency 2.5 ms, fixed-latency architecture
DSP-Enabled Yes	Limiters Peak voltage, RMS voltage, clip
Presets Bose Professional loudspeaker presets	Processing Functions Input EQ, array EQ, loudspeaker EQ, peak voltage limiter, RMS voltage limiter, delay, band-pass, matrix mixer



PHYSICAL

Colors Black	Cooling System Continuous temperature-controlled variable-speed fan, front-to-back airflow
Suspension/Mounting Rack-mounting	Product Dimensions (H×W×D) 19.0 in × 1.8 in × 14.1 in (483 mm × 45 mm × 358 mm)
Net Weight 15.4 lb (7.0 kg)	Rack Spaces 1
Shipping Weight 22.8 lb (10.3 kg)
