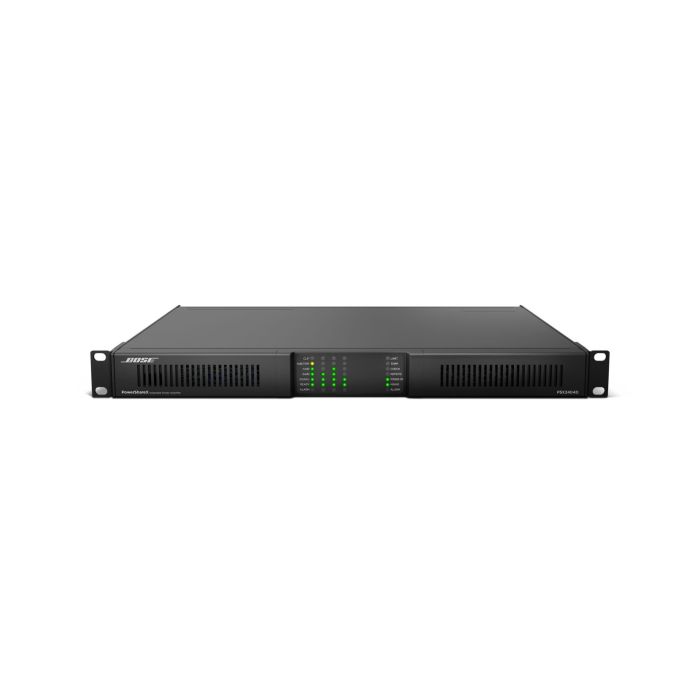

PowerShareX PSX2404D adaptable power amplifier
PowerShareX PSX2404D adaptable power amplifier
PowerShareX PSX2404D เพาเวอร์แอมป์อัจฉริยะ 4 แชนแนล พร้อม DSP ในตัว (กำลังรวม 2400 วัตต์)PSX2404D คือเพาเวอร์แอมป์อัจฉริยะขนาด 4 แชนแนล กำลังขับรวม 2400 วัตต์ ที่ออกแบบมาโดยเฉพาะสำหรับระบบเสียงติดตั้งของ Bose Professional มาพร้อม DSP ในตัว ที่ให้คุณเข้าถึงพรีเซ็ตลำโพงที่ปรับจูนมาอย่างเหมาะสมได้ทันที ผ่านซอฟต์แวร์ ControlSpace Designerรองรับการทำงานร่วมกับอุปกรณ์อื่นในระบบของ Bose ได้อย่างราบรื่น ทั้ง โปรเซสเซอร์ ลำโพง และคอนโทรลเลอร์ ตั้งแต่การออกแบบระบบ การตั้งค่า การติดตั้ง ไปจนถึงการใช้งานจริง — ทุกขั้นตอนง่ายขึ้น ช่วยให้คุณทำงานได้อย่างมืออาชีพและมีประสิทธิภาพ
FEATURES
- Power-sharing technology: Dynamically allocates power evenly or asymmetrically across outputs without having to bridge channels or lose channel count when powering Bose Professional loudspeakers.
- Bose Professional certified presets and ControlSpace Designer integration: Delivers the best performance, loudspeaker protection, and visibility of the entire Bose Professional system from a single UI for easy design, configuration, control, and monitoring.
- Proven Powersoft reliability: Ensures the systems operate every day, mitigating non-billable service calls.
- Flexible outputs: Capable of handling either low-impedance (2, 4, 8Ω) or high-impedance (70, 100V) loudspeaker loads.
- Built-in Dante audio: Supports up to 4 digital input channels from a Dante network eliminating the requirement of ordering and installing an accessory network card.
- 4 analog inputs: Provide line-level source connections.
- PowerShare Design Tool: A downloadable design tool that allows system designers the ability to choose their PowerShare amp and simulate the power-sharing capability that, in some cases, can lead to a lower-power model requirement and cost savings.
- GPIO connections: Provide a remote level, on/off, and alarm triggers.
- Network monitoring: Provides real-time system performance data, minimizing downtime, guesswork, and unnecessary service calls.
- Rack-friendly 1RU design: That is only 358 mm (14.1 in) deep eliminating the need for oversized racks.
- EN 54-16 compliant for reliable use in VA/PAVA systems with other compliant system components.
SPECS
Technical Specification
AMPLIFICATION
|
Channel Separation (Crosstalk) -70 dB typical at 1 kHz |
Gain, Low-Impedance 26 dB, 29 dB, 32 dB, 35 dB, selectable |
|
Maximum Peak Power, Symmetrical 1600 W at 2 Ω / 1200 W at 4 Ω, 8 Ω, 70V, 100V |
Maximum Peak Power, Asymmetrical 3200 W at 2 Ω / 3400 W at 4 Ω / 2600 W at 8 Ω / 3400 W at 70V / 3000 W at 100V |
|
Rated Power, Asymmetrical 1600 W at 2 Ω / 1700 W at 4 Ω / 1300 W at 8 Ω in 100V mode / 1700 W at 70V / 1500 W at 100V |
SNR > 104 dB (A-weighted) |
|
Frequency Response 20 Hz – 20 kHz (±1.0 dB), 1 W at 8 Ω |
Number of Channels 4 |
|
Power Class Class D |
Rated Power, Symmetrical 800 W per channel at 2 Ω / 600 W per channel at 4 Ω, 8 Ω, 70V, 100V |
|
THD+N < 0.1% (< 0.05% typical, from 0.1 W to half-power) |
AUDIO INPUTS, ANALOG
|
Input Channels 4 balanced, line |
Connectors (1) 6-pin Euroblock |
|
Input Impedance 20 kΩ |
Maximum Input Level 20 dBu |
|
Sensitivity 3.54 Vrms at 26 dB gain, 2.51 Vrms at 29 dB gain, 1.78 Vrms at 32 dB gain, 1.26 Vrms at 35 dB gain |
AUDIO INPUTS/OUTPUTS, DIGITAL
|
Channels 4 Dante in |
Connectors (1) RJ-45 Dante in |
|
Type 6-pin Euroblock |
AUDIO OUTPUTS, ANALOG
|
Channels 4 |
Connectors (1) 8-pin Euroblock, 7.62 mm |
COMPLIANCE
|
Safety EN 54-16 certified, voice alarm control and indicating equipment |
EMC This product meets all EN55103-2 immunity requirements for E2 electromagnetic environment. |
ELECTRICAL
|
Current Draw, Idle 0.45 A at 115 VAC, 60 Hz / 0.25 A at 230 VAC, 50 Hz |
Mains Connector IEC C20 inlet |
|
Mains Voltage 100–240 VAC (±10%), 50/60 Hz |
Protections High temperature, DC, output short circuit, high frequency, excessively low/high AC mains voltage, inrush current, clip, peak, long-term/RMS |
|
AC Power Consumption 31.1 W idle, 405 W maximum at 1/8 power at 4 Ω |
GENERAL
|
Software Applications ControlSpace Designer 5.12 or later (Windows) |
Computer Interface Connection RJ-45 (Ethernet) |
|
Notification Outputs (1) 12-pin Euroblock (3 pins per channel), general purpose |
INDICATORS AND CONTROLS
|
Controls, Front Panel (1) power button, (1) soft reset button, (1) hard reset button, (1) check button, (4) channel attenuation controls |
Controls, Rear Panel 16 output DIP switches (4 per channel), 8 system configuration DIP switches |
|
LED Status Indicators (21) channel meter LEDs, (7) system status LEDs, (2) power status LEDs |
INTEGRATED DSP
|
Delay 2 s (input) + 100 ms (output) for time alignment |
Internal Precision 32-bit floating-point |
|
Equalization Input: 8-band parametric EQ (±15 dB), notch, shelving, high-pass, low-pass / array EQ (ArenaMatch) / band-pass crossover / loudspeaker: 9-band parametric EQ (±15 dB), notch, shelving |
Crossover Types Butterworth, Bessel, or Linkwitz-Riley, up to 48 dB/octave |
|
A/D and D/A Converters 48 kHz / 24-bit |
Audio Latency 2.5 ms, fixed-latency architecture |
|
DSP-Enabled Yes |
Limiters Peak voltage, RMS voltage, clip |
|
Presets Bose Professional loudspeaker presets |
Processing Functions Input EQ, array EQ, loudspeaker EQ, peak voltage limiter, RMS voltage limiter, delay, band-pass, matrix mixer |
PHYSICAL
|
Colors Black |
Cooling System Continuous temperature-controlled variable-speed fan, front-to-back airflow |
|
Suspension/Mounting Rack-mounting |
Product Dimensions (H×W×D) 19.0 in × 1.8 in × 14.1 in (483 mm × 45 mm × 358 mm) |
|
Net Weight 15.4 lb (7.0 kg) |
Rack Spaces 1 |
|
Shipping Weight 22.8 lb (10.3 kg) |
| Price | ฿149,000.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ไร้สาย | ไม่ได้ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| บลูทูธ | No | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | PowerShareX PSX2404D adaptable power amplifier
