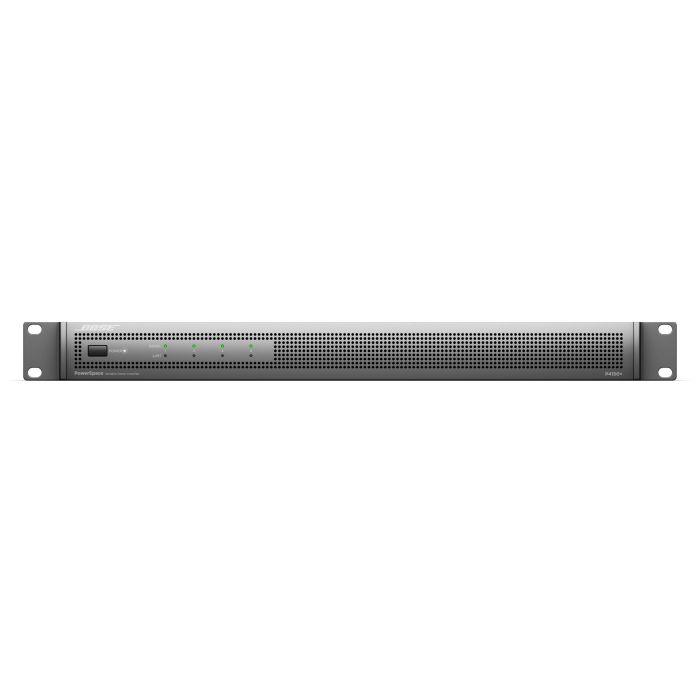

PowerSpace P4150+ versatile power amplifier

฿92,290.00
Out of stock
SKU
PowerSpace P4150+ amplifier

PowerSpace P4150+ versatile power amplifier

PowerSpace P4150+ เพาเวอร์แอมป์อเนกประสงค์ 4 แชนแนล พร้อม DSP ในตัว

P4150+ จาก Bose Professional เป็นเพาเวอร์แอมป์ที่รวมภาคขยายเสียงและ DSP ไว้ในยูนิตขนาด 1RU แบบ 4 แชนแนล ออกแบบมาเพื่อรองรับการติดตั้งระบบเสียงเชิงพาณิชย์ที่ต้องการความรวดเร็วและความแม่นยำ  เป็นส่วนหนึ่งของโซลูชันระบบเสียงครบวงจรของ Bose ที่รวมถึง ลำโพง คอนโทรลเลอร์ และซอฟต์แวร์ ที่ช่วยให้งานติดตั้งเป็นเรื่องง่ายยิ่งขึ้น  แอมป์รุ่นนี้มาพร้อม เวิร์กโฟลว์การตั้งค่าที่รวดเร็ว, ยูทิลิตี้บนตัวเครื่อง และ อินเทอร์เฟซผ่านเว็บ (Browser-Based UI) ที่ออกแบบมาให้ใช้งานง่าย  ช่วยลดเวลาการติดตั้ง พร้อมเพิ่มความแม่นยำในการตั้งค่า  หลังจากติดตั้งแล้ว ระบบยังขับเคลื่อนด้วย อัลกอริธึมเฉพาะจาก Bose Professional เพื่อประสิทธิภาพที่สม่ำเสมอ  รองรับการใช้งานร่วมกับ ControlCenter (โซนคอนโทรลเลอร์แบบแอนะล็อก) เพื่อความสะดวกของผู้ใช้งานปลายทาง  PowerSpace+ Series คือทางเลือกที่รวมทุกอย่างไว้ในเครื่องเดียว — ทั้งภาคขยายเสียงและ DSP — สำหรับระบบเสียงเชิงพาณิชย์ระดับพรีเมียมที่ต้องการทั้ง ความคล่องตัว ความน่าเชื่อถือ และคุณภาพเสียงสูงสุด



FEATURES

  • 150 watts per channel and works seamlessly with Bose Professional loudspeakers and controls to create complete commercial sound systems
  • Built-in DSP, including SmartBass processing, routing, level control, delays, limiters, Bose Professional loudspeaker EQs, plus input and area EQs
  • PowerSpace configuration utility facilitates setup with an integrated webserver and intuitive browser-based UI, including real-time control with signal and thermal monitoring
  • Opti-Voice paging provides a smooth transition between music and announcements
  • Integrated features to simplify commercial installations: Dedicated input for 600 Ω telephone or mic paging, independent 600 Ω music-on-hold and line-level aux outputs, and a NO/NC mute connection
  • Load-independent outputs deliver full channel power to either low-impedance loads (4-8 Ω) or high-impedance (70/100V) loads without bridging
  • I-Share outputs deliver 2x power level by combining the current of two channels
  • Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns
  • Intuitive end-user operation — optional ControlCenter CC-1, CC-2, and CC-3 analog zone controllers provide easy volume control and source selection

SPECS

Technical Specification
       AMPLIFICATION



Channel Separation (Crosstalk)

> 80 dB at 1 kHz, > 65 dB at 20 kHz



Dynamic Range

≥ 100 dB at rated power, A-weighted



Gain, High-Impedance

35 dB, 70V mode / 38 dB, 100V mode



Gain, Low-Impedance

29 dB



Maximum Peak Power, Symmetrical

300 W



Frequency Response

20 Hz – 20 kHz (±1 dB) at 1 W, 4–8 Ω / 20 Hz – 20 kHz (±1 dB) at 1 W with 50 Hz high-pass filter, 70/100V



Number of Channels

4



Power Class

Class D



Rated Power, Symmetrical

150 W



THD+N

< 0.04% at 1 kHz, 4–8 Ω, 70V/100V



AUDIO INPUTS, ANALOG



Input Channels

4 balanced, 2 unbalanced



Connectors

(3) 3-pin Euroblock, (1) 4-pin Euroblock, (2) RCA stereo pairs



Input Impedance

10 kΩ



Maximum Input Level

22 dBu at 14 dBu sensitivity



Sensitivity

-10 dBV, 4 dBu, 14 dBu





AUDIO OUTPUTS, ANALOG



Channels

6 (4 loudspeaker + 2 auxiliary)



Connectors

(1) 8-terminal block, (1) 3-pin Euroblock, line



COMPLIANCE



EMC

This product meets all EN55103-2 immunity requirements for E2 electromagnetic environment.





ELECTRICAL



Mains Connector

IEC C14 inlet



Mains Voltage

100–240 VAC (±10%), 50/60 Hz




AC Power Consumption

25 W auto-standby, 325 W maximum





GENERAL



System Requirements

Google Chrome 64.0.3282.140 or later / Mozilla Firefox Quantum 58.0.2 or later / Microsoft Internet Explorer 11.2007.14393.0 or later / Microsoft Edge 38.14393.1066.0 or later

Software Applications

PowerSpace+ Configuration Utility (web browser)



Computer Interface Connection

RJ-45 (Ethernet)





INDICATORS AND CONTROLS



Controls, Front Panel

(1) power LED, (1) input signal LED, (1) output limit LED



Controls, Rear Panel

RJ-45 remote input for ControlCenter CC-1, CC-2 and CC-3 zone controllers, mute, output attenuators



LED Status Indicators

(1) power/status LED, (4) input signal LEDs, (4) output limit LEDs





INTEGRATED DSP

Delay
2 s



Equalization

Input: 3-band EQ, paging / Loudspeaker: 9-band PEQ (±20 dB), notch, shelving, high-pass, low-pass, low-frequency compensation / Area : 7-band PEQ (±20 dB), notch, shelving, high-pass, low-pass



Crossover Types

Butterworth 6 (±6 dB/octave), Butterworth 12 (±12 dB/octave), Butterworth 18 (±18 dB/octave), Butterworth 24 (±24 dB/octave)

A/D and D/A Converters

48 kHz / 24-bit



Audio Latency

< 1 ms, analog input to analog loudspeaker output



DSP-Enabled

Yes



Limiters

Peak voltage, RMS voltage



Presets

Bose Professional loudspeaker presets



Processing Functions

Input EQ, loudspeaker EQ, peak voltage limiter, RMS voltage limiter, ControlCenter configuration, matrix mixer, mute/output polarity inversion





PHYSICAL



Colors

Gray



Cooling System

Microprocessor-controlled variable-speed fans, front-to-back air flow



Suspension/Mounting

Rack-mounting



Operating Temperature Range

0 °C to 40 °C (32 °F to 104 °F)



Product Dimensions (H×W×D)

1.7 in × 19.0 in × 16.5 in (44 mm × 483 mm × 420 mm)



Net Weight

14.6 lb (6.6 kg)



Rack Spaces

1



Shipping Weight

19.0 lb (8.6 kg)

More Information
Price ฿92,290.00
ไร้สาย ไม่ได้
บลูทูธ No
Description

PowerSpace P4150+ versatile power amplifier

PowerSpace P4150+ เพาเวอร์แอมป์อเนกประสงค์ 4 แชนแนล พร้อม DSP ในตัว

P4150+ จาก Bose Professional เป็นเพาเวอร์แอมป์ที่รวมภาคขยายเสียงและ DSP ไว้ในยูนิตขนาด 1RU แบบ 4 แชนแนล ออกแบบมาเพื่อรองรับการติดตั้งระบบเสียงเชิงพาณิชย์ที่ต้องการความรวดเร็วและความแม่นยำ  เป็นส่วนหนึ่งของโซลูชันระบบเสียงครบวงจรของ Bose ที่รวมถึง ลำโพง คอนโทรลเลอร์ และซอฟต์แวร์ ที่ช่วยให้งานติดตั้งเป็นเรื่องง่ายยิ่งขึ้น  แอมป์รุ่นนี้มาพร้อม เวิร์กโฟลว์การตั้งค่าที่รวดเร็ว, ยูทิลิตี้บนตัวเครื่อง และ อินเทอร์เฟซผ่านเว็บ (Browser-Based UI) ที่ออกแบบมาให้ใช้งานง่าย  ช่วยลดเวลาการติดตั้ง พร้อมเพิ่มความแม่นยำในการตั้งค่า  หลังจากติดตั้งแล้ว ระบบยังขับเคลื่อนด้วย อัลกอริธึมเฉพาะจาก Bose Professional เพื่อประสิทธิภาพที่สม่ำเสมอ  รองรับการใช้งานร่วมกับ ControlCenter (โซนคอนโทรลเลอร์แบบแอนะล็อก) เพื่อความสะดวกของผู้ใช้งานปลายทาง  PowerSpace+ Series คือทางเลือกที่รวมทุกอย่างไว้ในเครื่องเดียว — ทั้งภาคขยายเสียงและ DSP — สำหรับระบบเสียงเชิงพาณิชย์ระดับพรีเมียมที่ต้องการทั้ง ความคล่องตัว ความน่าเชื่อถือ และคุณภาพเสียงสูงสุด



FEATURES

  • 150 watts per channel and works seamlessly with Bose Professional loudspeakers and controls to create complete commercial sound systems
  • Built-in DSP, including SmartBass processing, routing, level control, delays, limiters, Bose Professional loudspeaker EQs, plus input and area EQs
  • PowerSpace configuration utility facilitates setup with an integrated webserver and intuitive browser-based UI, including real-time control with signal and thermal monitoring
  • Opti-Voice paging provides a smooth transition between music and announcements
  • Integrated features to simplify commercial installations: Dedicated input for 600 Ω telephone or mic paging, independent 600 Ω music-on-hold and line-level aux outputs, and a NO/NC mute connection
  • Load-independent outputs deliver full channel power to either low-impedance loads (4-8 Ω) or high-impedance (70/100V) loads without bridging
  • I-Share outputs deliver 2x power level by combining the current of two channels
  • Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns
  • Intuitive end-user operation — optional ControlCenter CC-1, CC-2, and CC-3 analog zone controllers provide easy volume control and source selection

SPECS

Technical Specification
       AMPLIFICATION



Channel Separation (Crosstalk)

> 80 dB at 1 kHz, > 65 dB at 20 kHz



Dynamic Range

≥ 100 dB at rated power, A-weighted



Gain, High-Impedance

35 dB, 70V mode / 38 dB, 100V mode



Gain, Low-Impedance

29 dB



Maximum Peak Power, Symmetrical

300 W



Frequency Response

20 Hz – 20 kHz (±1 dB) at 1 W, 4–8 Ω / 20 Hz – 20 kHz (±1 dB) at 1 W with 50 Hz high-pass filter, 70/100V



Number of Channels

4



Power Class

Class D



Rated Power, Symmetrical

150 W



THD+N

< 0.04% at 1 kHz, 4–8 Ω, 70V/100V



AUDIO INPUTS, ANALOG



Input Channels

4 balanced, 2 unbalanced



Connectors

(3) 3-pin Euroblock, (1) 4-pin Euroblock, (2) RCA stereo pairs



Input Impedance

10 kΩ



Maximum Input Level

22 dBu at 14 dBu sensitivity



Sensitivity

-10 dBV, 4 dBu, 14 dBu





AUDIO OUTPUTS, ANALOG



Channels

6 (4 loudspeaker + 2 auxiliary)



Connectors

(1) 8-terminal block, (1) 3-pin Euroblock, line



COMPLIANCE



EMC

This product meets all EN55103-2 immunity requirements for E2 electromagnetic environment.





ELECTRICAL



Mains Connector

IEC C14 inlet



Mains Voltage

100–240 VAC (±10%), 50/60 Hz




AC Power Consumption

25 W auto-standby, 325 W maximum





GENERAL



System Requirements

Google Chrome 64.0.3282.140 or later / Mozilla Firefox Quantum 58.0.2 or later / Microsoft Internet Explorer 11.2007.14393.0 or later / Microsoft Edge 38.14393.1066.0 or later

Software Applications

PowerSpace+ Configuration Utility (web browser)



Computer Interface Connection

RJ-45 (Ethernet)





INDICATORS AND CONTROLS



Controls, Front Panel

(1) power LED, (1) input signal LED, (1) output limit LED



Controls, Rear Panel

RJ-45 remote input for ControlCenter CC-1, CC-2 and CC-3 zone controllers, mute, output attenuators



LED Status Indicators

(1) power/status LED, (4) input signal LEDs, (4) output limit LEDs





INTEGRATED DSP

Delay
2 s



Equalization

Input: 3-band EQ, paging / Loudspeaker: 9-band PEQ (±20 dB), notch, shelving, high-pass, low-pass, low-frequency compensation / Area : 7-band PEQ (±20 dB), notch, shelving, high-pass, low-pass



Crossover Types

Butterworth 6 (±6 dB/octave), Butterworth 12 (±12 dB/octave), Butterworth 18 (±18 dB/octave), Butterworth 24 (±24 dB/octave)

A/D and D/A Converters

48 kHz / 24-bit



Audio Latency

< 1 ms, analog input to analog loudspeaker output



DSP-Enabled

Yes



Limiters

Peak voltage, RMS voltage



Presets

Bose Professional loudspeaker presets



Processing Functions

Input EQ, loudspeaker EQ, peak voltage limiter, RMS voltage limiter, ControlCenter configuration, matrix mixer, mute/output polarity inversion





PHYSICAL



Colors

Gray



Cooling System

Microprocessor-controlled variable-speed fans, front-to-back air flow



Suspension/Mounting

Rack-mounting



Operating Temperature Range

0 °C to 40 °C (32 °F to 104 °F)



Product Dimensions (H×W×D)

1.7 in × 19.0 in × 16.5 in (44 mm × 483 mm × 420 mm)



Net Weight

14.6 lb (6.6 kg)



Rack Spaces

1



Shipping Weight

19.0 lb (8.6 kg)
