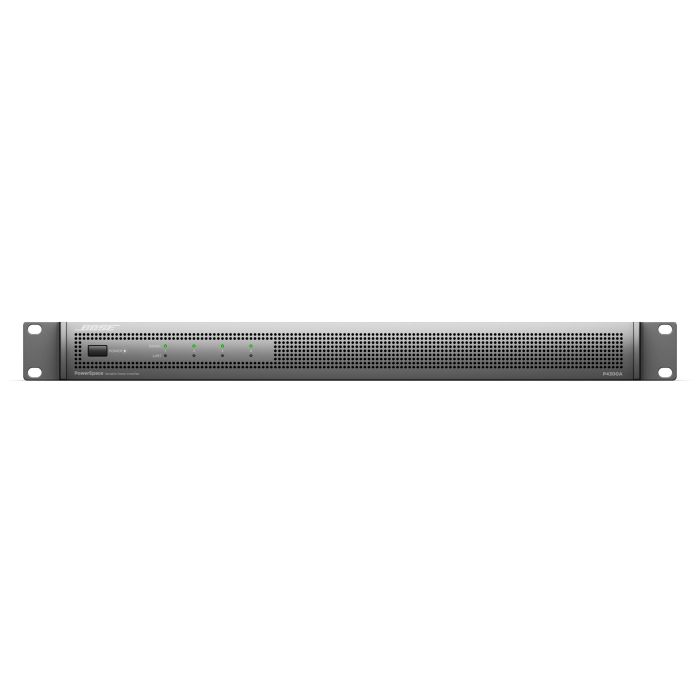

PowerSpace P4300A versatile power amplifier

฿71,390.00
Out of stock
SKU
PowerSpace P4300A amplifier

PowerSpace P4300A versatile power amplifier

    PowerSpace P4300A เพาเวอร์แอมป์อเนกประสงค์สำหรับระบบเสียงเชิงพาณิชย์คุณภาพสูงเหมาะอย่างยิ่งสำหรับ การขยายโซนเสียง (Zone Expansion) แอมป์รุ่น PowerSpace P4300A จาก Bose Professional ช่วยยกระดับระบบเสียงติดตั้งให้มีกำลังขับที่ สะอาด เสถียร และเชื่อถือได้ พร้อมรองรับ การเชื่อมต่อสัญญาณเสียงดิจิทัล  มาพร้อมอินพุต AmpLink ที่รับสัญญาณเสียงดิจิทัลแบบ หลายแชนแนล ไม่บีบอัด และหน่วงต่ำ จาก DSP ของ Bose Professional ได้ผ่านสาย Cat 5 เพียงเส้นเดียวรุ่น P4300A ให้กำลังขับ 300 วัตต์ต่อแชนแนล พร้อมเอาต์พุตแบบยืดหยุ่น รองรับการเชื่อมต่อกับโหลดทั้งแบบ Low Impedance และ High Impedance โดยไม่ต้องบริดจ์ (Bridge)สามารถรวมกำลังขับจาก 2 แชนแนลเพื่อส่งพลัง 2 เท่าให้กับโซนเดียว ได้อีกด้วย

สำหรับงานติดตั้งเชิงพาณิชย์ระดับพรีเมียม PowerSpace Series คือคำตอบที่มอบทั้งพลังและประสิทธิภาพอย่างแท้จริง — เรียบง่าย แต่ทรงพลัง



FEATURES

  • 300 watts per channel and works seamlessly with loudspeakers, DSPs, and controls to create complete commercial sound systems
  • AmpLink input for simplified multichannel digital audio connection to compatible DSPs, reducing terminations and related points of failure
  • Load-independent outputs deliver full channel power to either low-impedance loads (4-8 Ω) or high-impedance (70/100V) loads without bridging
  • I-Share outputs deliver 2x power level by combining the current of two channels
  • Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns

SPECS

Technical Specification
         AMPLIFICATION



Channel Separation (Crosstalk)

> 80 dB at 1 kHz, > 65 dB at 20 kHz



Dynamic Range

≥ 100 dB at rated power, A-weighted



Gain, High-Impedance

35 dB, 70V mode / 38 dB, 100V mode



Gain, Low-Impedance

32 dB



Maximum Peak Power, Symmetrical

600 W



Frequency Response

20 Hz – 20 kHz (±1 dB) at 1 W, 4–8 Ω / 20 Hz – 20 kHz (±1 dB) at 1 W with 50 Hz high-pass filter, 70/100V



Number of Channels

4



Power Class

Class D



Rated Power, Symmetrical

300 W



THD+N

< 0.04% at 1 kHz, 4–8 Ω, 70V/100V



AUDIO INPUTS, ANALOG



Input Channel

4 balanced



Connectors

(2) 6-pin Euroblock



Input Impedance

10 kΩ



Maximum Input Level

22 dBu at 14 dBu sensitivity



Sensitivity

-10 dBV, 4 dBu, 14 dBu





AUDIO INPUTS/OUTPUTS, DIGITAL



Channels

8 AmpLink in, 8 AmpLink thru



Connectors

(1) RJ-45 AmpLink in / (1) RJ-45 AmpLink thru



Type

2 × 6-pin Euroblock





AUDIO OUTPUTS, ANALOG



Channels

4



Connectors

(1) 8-terminal block



COMPLIANCE



EMC

This product meets all EN55103-2 immunity requirements for E2 electromagnetic environment.





ELECTRICAL



Mains Connector

IEC 60320-C14 inlet



Mains Voltage

100–240 VAC (±10%), 50/60 Hz



AC Power Consumption

25 W auto-standby, 570 W maximum





INDICATORS AND CONTROLS

Controls, Front Panel

(1) power button

Controls, Rear Panel

Mute, output attenuators, DIP switches for amplifier configuration, input selector, update port, gain/sensitivity

LED Status Indicators

(1) power/status LED, (4) input signal LEDs, (4) output limit LEDs





INTEGRATED DSP



DSP-Enabled

No





PHYSICAL

Colors

Gray



Cooling System

Microprocessor-controlled variable-speed fans, front-to-back air flow

Suspension/Mounting

Rack-mounting



Operating Temperature Range

0 °C to 40 °C (32 °F to 104 °F)



Product Dimensions (H×W×D

1.7 in × 19.0 in × 16.5 in (44 mm × 483 mm × 420 mm)

Net Weight

14.6 lb (6.6 kg



Rack Spaces

1



Shipping Weight

19.0 lb (8.6 kg)



More Information
Price ฿71,390.00
ไร้สาย ไม่ได้
บลูทูธ No
Description

PowerSpace P4300A versatile power amplifier

    PowerSpace P4300A เพาเวอร์แอมป์อเนกประสงค์สำหรับระบบเสียงเชิงพาณิชย์คุณภาพสูงเหมาะอย่างยิ่งสำหรับ การขยายโซนเสียง (Zone Expansion) แอมป์รุ่น PowerSpace P4300A จาก Bose Professional ช่วยยกระดับระบบเสียงติดตั้งให้มีกำลังขับที่ สะอาด เสถียร และเชื่อถือได้ พร้อมรองรับ การเชื่อมต่อสัญญาณเสียงดิจิทัล  มาพร้อมอินพุต AmpLink ที่รับสัญญาณเสียงดิจิทัลแบบ หลายแชนแนล ไม่บีบอัด และหน่วงต่ำ จาก DSP ของ Bose Professional ได้ผ่านสาย Cat 5 เพียงเส้นเดียวรุ่น P4300A ให้กำลังขับ 300 วัตต์ต่อแชนแนล พร้อมเอาต์พุตแบบยืดหยุ่น รองรับการเชื่อมต่อกับโหลดทั้งแบบ Low Impedance และ High Impedance โดยไม่ต้องบริดจ์ (Bridge)สามารถรวมกำลังขับจาก 2 แชนแนลเพื่อส่งพลัง 2 เท่าให้กับโซนเดียว ได้อีกด้วย

สำหรับงานติดตั้งเชิงพาณิชย์ระดับพรีเมียม PowerSpace Series คือคำตอบที่มอบทั้งพลังและประสิทธิภาพอย่างแท้จริง — เรียบง่าย แต่ทรงพลัง



FEATURES

  • 300 watts per channel and works seamlessly with loudspeakers, DSPs, and controls to create complete commercial sound systems
  • AmpLink input for simplified multichannel digital audio connection to compatible DSPs, reducing terminations and related points of failure
  • Load-independent outputs deliver full channel power to either low-impedance loads (4-8 Ω) or high-impedance (70/100V) loads without bridging
  • I-Share outputs deliver 2x power level by combining the current of two channels
  • Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns

SPECS

Technical Specification
         AMPLIFICATION



Channel Separation (Crosstalk)

> 80 dB at 1 kHz, > 65 dB at 20 kHz



Dynamic Range

≥ 100 dB at rated power, A-weighted



Gain, High-Impedance

35 dB, 70V mode / 38 dB, 100V mode



Gain, Low-Impedance

32 dB



Maximum Peak Power, Symmetrical

600 W



Frequency Response

20 Hz – 20 kHz (±1 dB) at 1 W, 4–8 Ω / 20 Hz – 20 kHz (±1 dB) at 1 W with 50 Hz high-pass filter, 70/100V



Number of Channels

4



Power Class

Class D



Rated Power, Symmetrical

300 W



THD+N

< 0.04% at 1 kHz, 4–8 Ω, 70V/100V



AUDIO INPUTS, ANALOG



Input Channel

4 balanced



Connectors

(2) 6-pin Euroblock



Input Impedance

10 kΩ



Maximum Input Level

22 dBu at 14 dBu sensitivity



Sensitivity

-10 dBV, 4 dBu, 14 dBu





AUDIO INPUTS/OUTPUTS, DIGITAL



Channels

8 AmpLink in, 8 AmpLink thru



Connectors

(1) RJ-45 AmpLink in / (1) RJ-45 AmpLink thru



Type

2 × 6-pin Euroblock





AUDIO OUTPUTS, ANALOG



Channels

4



Connectors

(1) 8-terminal block



COMPLIANCE



EMC

This product meets all EN55103-2 immunity requirements for E2 electromagnetic environment.





ELECTRICAL



Mains Connector

IEC 60320-C14 inlet



Mains Voltage

100–240 VAC (±10%), 50/60 Hz



AC Power Consumption

25 W auto-standby, 570 W maximum





INDICATORS AND CONTROLS

Controls, Front Panel

(1) power button

Controls, Rear Panel

Mute, output attenuators, DIP switches for amplifier configuration, input selector, update port, gain/sensitivity

LED Status Indicators

(1) power/status LED, (4) input signal LEDs, (4) output limit LEDs





INTEGRATED DSP



DSP-Enabled

No





PHYSICAL

Colors

Gray



Cooling System

Microprocessor-controlled variable-speed fans, front-to-back air flow

Suspension/Mounting

Rack-mounting



Operating Temperature Range

0 °C to 40 °C (32 °F to 104 °F)



Product Dimensions (H×W×D

1.7 in × 19.0 in × 16.5 in (44 mm × 483 mm × 420 mm)

Net Weight

14.6 lb (6.6 kg



Rack Spaces

1



Shipping Weight

19.0 lb (8.6 kg)
