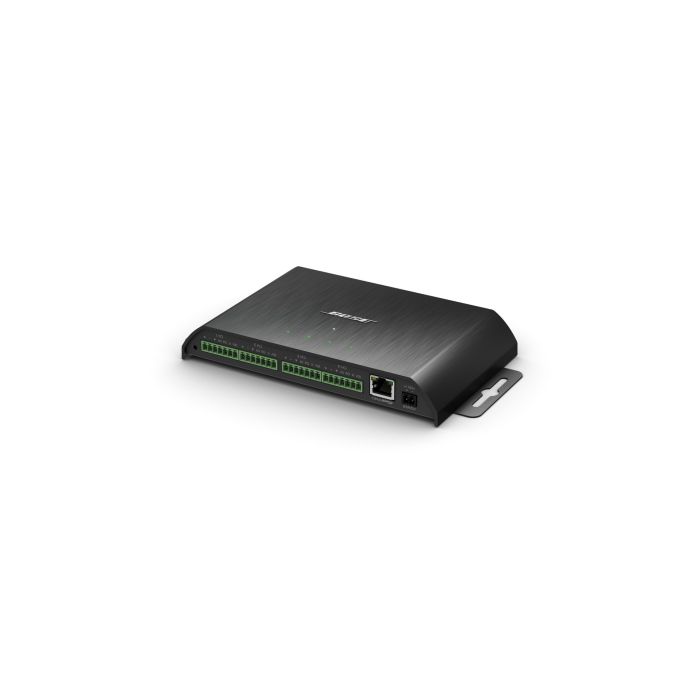

ControlSpace EX-4CH microphone/GPIO Dante endpoint

   Optimized for use with the EX-1280C, EX-12AEC, and EX-440C, the EX-4ML Dante endpoint, is a convenient, cost effective solution for connecting up to 4 conferencing microphones over a single Cat 5/6 cable. Whether used under a conference table, daisy-chained with other EX or endpoints, or standalone in a rack, the EX-4ML adds 4 high-quality microphone/line inputs, 4 GPI, and 8 GPO to your networked audio system. Autodiscovery, drag and drop programming, auto-routing, and simplified logic control in ControlSpace Designer make configuring the EX-4ML easy. Tasks such as configuring microphone LED status and microphone mute actions are greatly simplified within ControlSpace Designer without requiring external control system programming.



FEATURES

     Applications
         Designed for a wide range of applications, including:

• Boardrooms
• Medium/large conference rooms
• Courtrooms
• Distance learning
• Auditoriums
• Multipurpose spaces



SPECS

Technical Specification
       AMPLIFICATION

Frequency Response 20 Hz – 20 kHz (±1 dB)

THD+N < 0.01% at any gain setting, input signal 3 dB below maximum



AUDIO INPUTS, ANALOG

Input Channels 4 balanced, mic/line	Connectors (4) 7-pin Euroblock, 3.81 mm, detachable
Equivalent Input Noise -115 dBu at +45 dB gain	Sensitivity Options 0 dB, +15 dB, +30 dB, +45 dB, software-selectable
Input Impedance > 1.8 kΩ at any gain setting	Maximum Input Level +8 dBu at 0 dB gain
Phantom Power 48 VDC, software-selectable per input



AUDIO INPUTS/OUTPUTS, DIGITAL

Connectors (1) RJ-45 Dante in / (1) RJ-45 Dante out



COMPLIANCE

EMC FCC Part 15 Class A; UL 60950-1, 2nd edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd edition, 2014-10, IEC 60950-1:2005 (2nd edition)



CONTROL INPUTS

Inputs (Control) (4) general-purpose (1 per audio input), 7-pin Euroblock, 3.81 mm



CONTROL OUTPUTS

Outputs (Control) (8) general-purpose (2 per audio input), 7-pin Euroblock, 3.81 mm



ELECTRICAL

Connectors (2) Euroblock, 2 pins, 3.81 mm	Power Range 12 VDC, daisy-chainable
PoE Class Class 0 802.3at PoE+, PD-compliant	Power Range 12 VDC, 200 mA
AC Power Consumption 4.3 W + 1 W phantom power (if used)



GENERAL

Compatible with ControlSpace EX-1280, ControlSpace EX-440C, ControlSpace EX-1280C, ControlSpace EX-12AEC, ControlSpace EX Endpoint Microphone Extension Cable, ControlSpace EX Endpoint Mounting Bracket

Software Applications ControlSpace Designer 5.0 or later (Windows)



INDICATORS AND CONTROLS

LED Status Indicators (1) power LED, (4) input signal status LEDs



PHYSICAL

Colors Black	Suspension/Mounting (2) mounting tabs
Operating Temperature Range 0 °C to 40 °C (32 °F to 104 °F)	Product Dimensions (H×W×D) 1.1 in × 8.4 in × 4.4 in (29 mm × 213 mm × 112 mm)



Product codes

771783-0110 ControlSpace EX-4CH
